ES Cutter Heads

Model ES 45 HD

TECHNICAL DATA

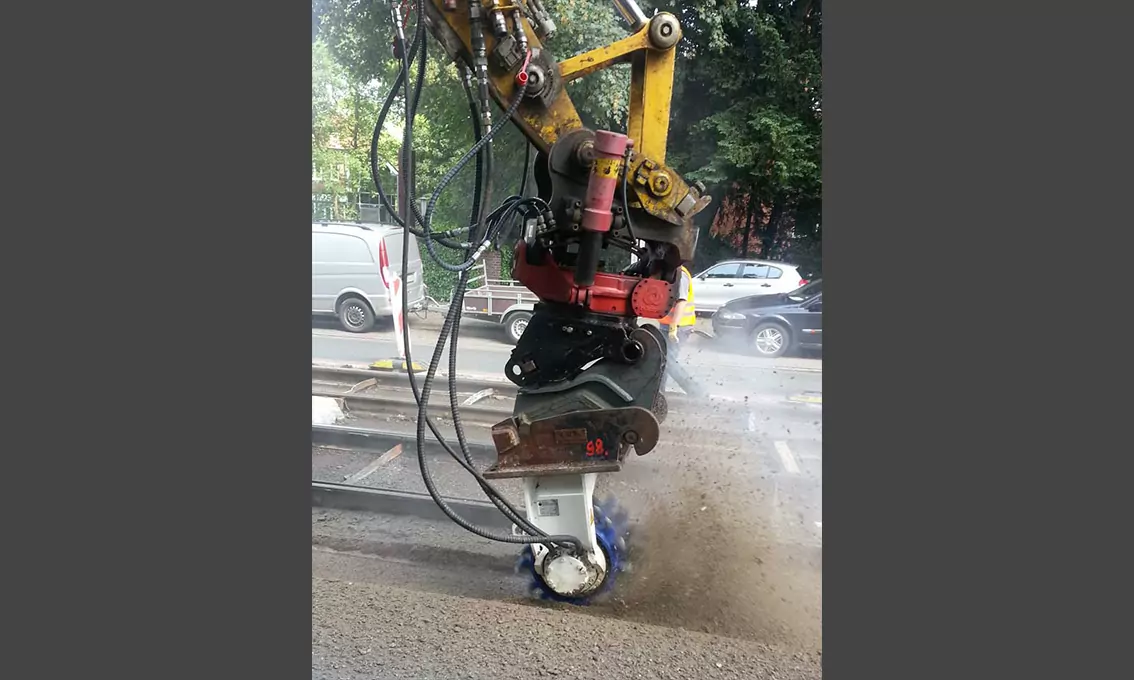

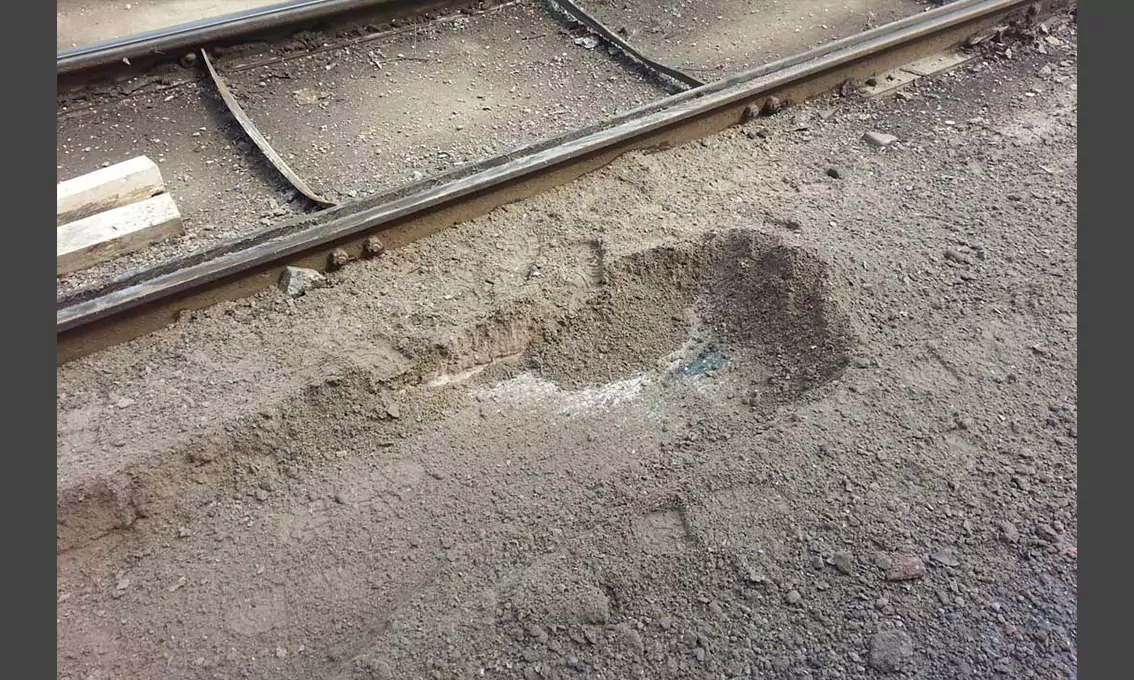

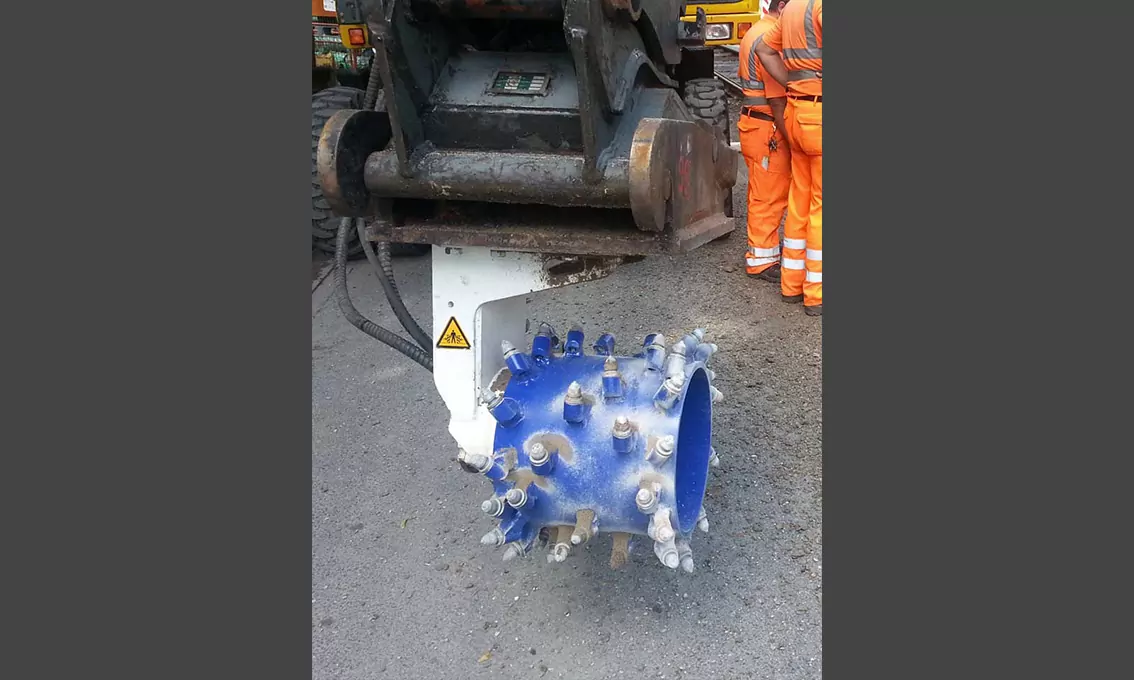

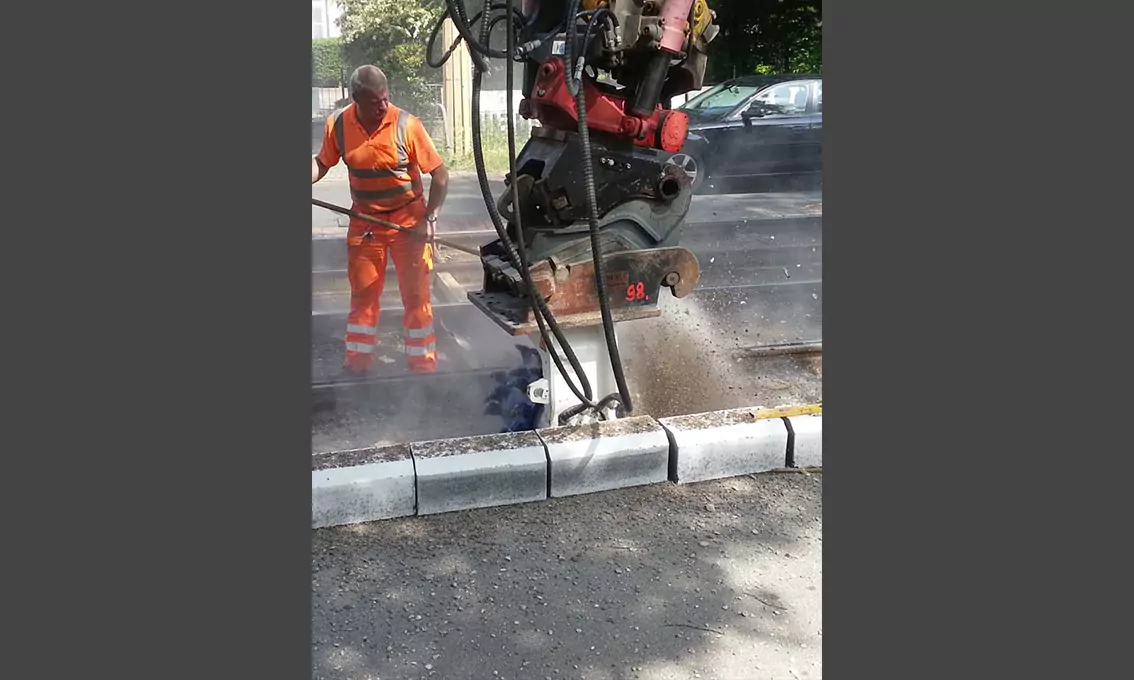

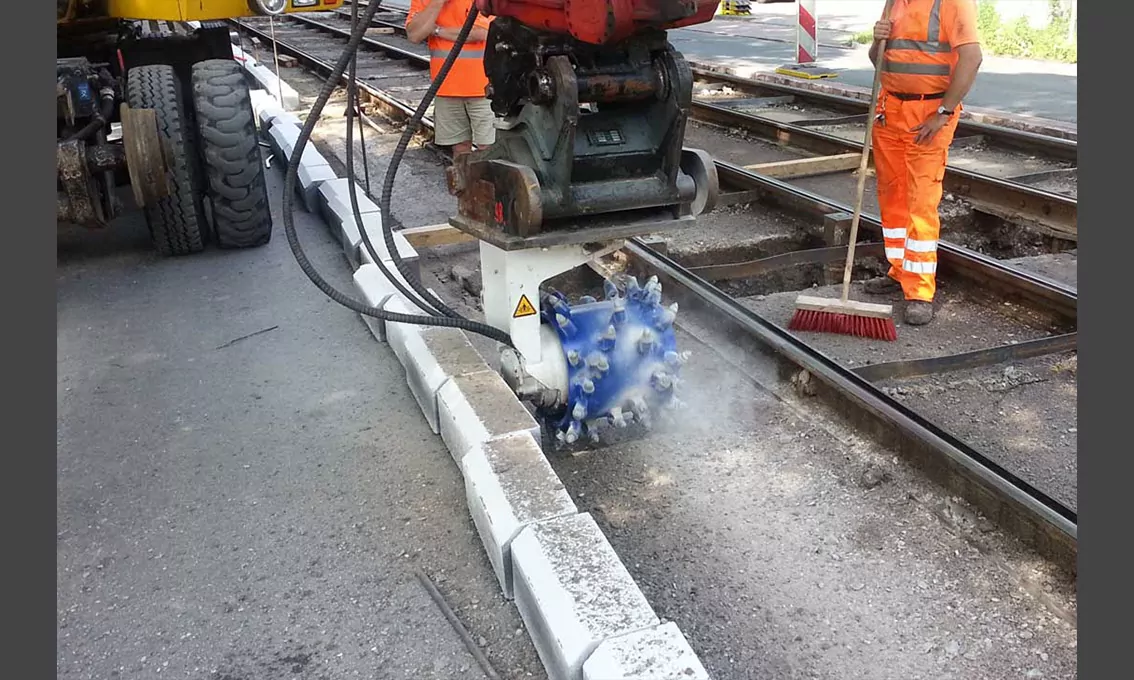

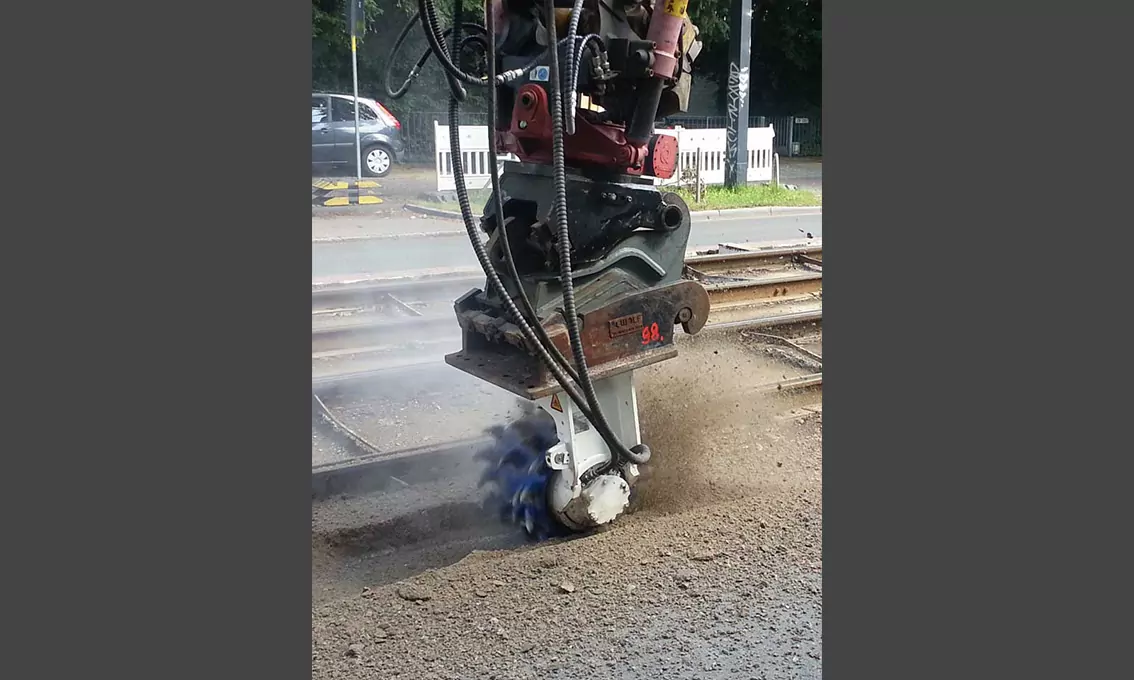

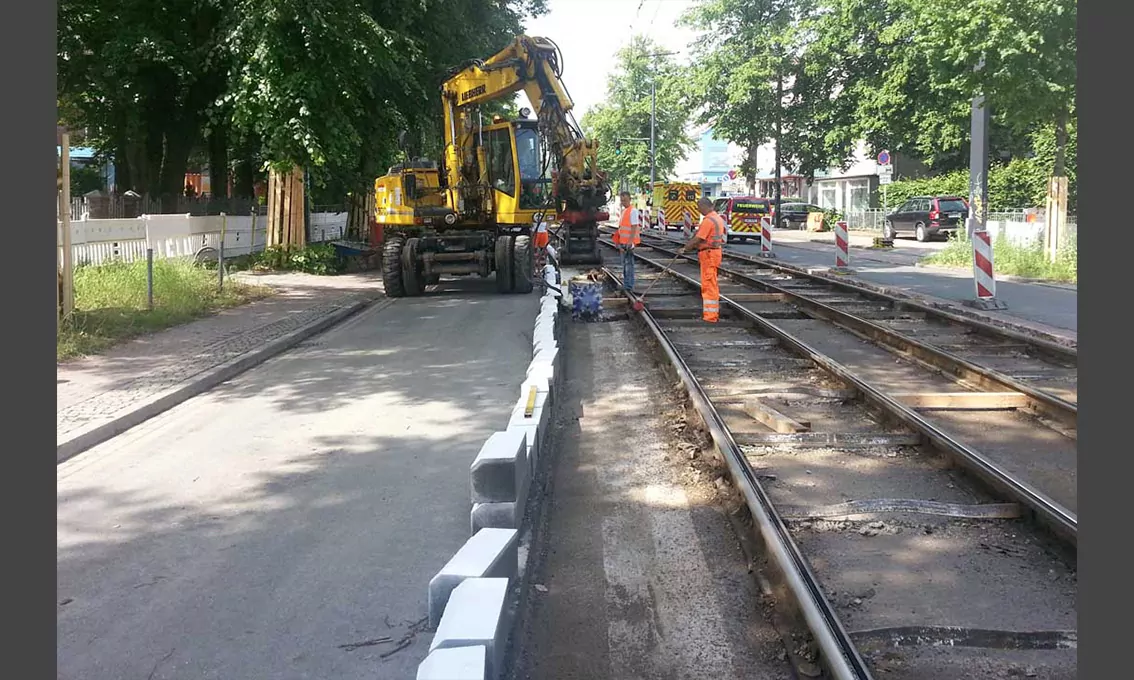

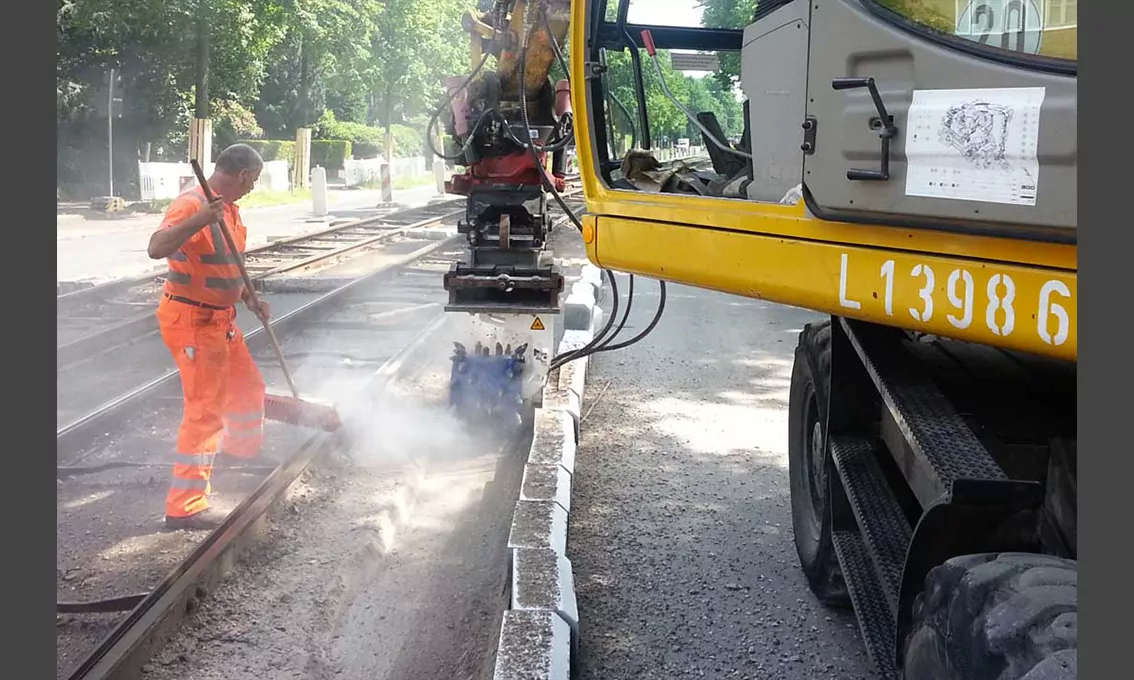

FOTOS

Measure:

Recommended excavator weight
10 – 16 t 22,000 – 33,000 lb
Rated power
65 kW 87 hp (65 kW)
Diameter of cutter drum (A
580 mm 23
Width of cutter drum (B)
450 mm 18 in
Cutting depth
110 mm 4 in
Min. oil flow
100 l/min 27 gal/min
Max. oil flow
180 l/min 47 gal/min
Max. hydraulic pressure
380 l/min 5,500 psi (380 bar) psi (bar)
Torque at 350 bar
8,700 Nm 6,500 lbf·ft
Pick box
PH 20 Type PH 20 Type
Number of picks
49 Pcs 49 Pcs
Standard pick
ER 16/48/32/20 H ER 16/48/32/20 H
