ROTARY DRUM CUTTERS

KEMROC Rotary drum cutters – proven concepts made better

IN ADDITION TO OUR UNIQUE CHAIN CUTTER WITH A CUTTER CHAIN RUNNING BETWENN CUTTER DRUMS, NOW WE HAVE ROTARY DRUM CUTTERS WITHOUT THE CUTTER CHAIN IN OUR PRODUCT RANGE.

KR range

In addition to standard EK and the convertible EKT range, traditional style rotary drum cutters are now also available from KEMROC. They are designated as the new KR range of drum cutters. Designed to be incredibly robust, these attachments are ideal for use on short arm excavators working in confined spaces, especially in tunnelling and also for the vibration free and silent demolition of re-enforced concrete structures.

KRD range

The new KRD range of direct drive drum cutters can be described as compact, lightweight but strong. Lighter and shorter, these attach­ments are ideal for use on long-arm excavators for demolition and shaft sinking applications. They can also be used for soil stabilisation and concrete renovation applications. Intentionally oversized bearings have been used to support the cutter drums for a long operating life.

EKT range

The patented EK range of chain cutters are one of our core products and continues to be recommended as an ideal tool for trenching contractors. This concept is being expanded with the addition of the new EKT range of traditional style drum cutters. These lower priced models are supplied as rotary drum cutters without a central cutting chain, but conversion kits are available so that cutter chains can be fitted later.

Compare ranges

  • EKT range
    Rotary drum cutters – can be converted into chain cutters
    Measure:
    • Recommended excavator weight
      18 – 70 t
      4.4K-154K lb
    • Possibility of conversation to a chain cutter
      yes
      yes
    Applications:
    • Trenching and pipeline work
    • Mining of soft to medium hard minerals
    • Also used for concrete renovation, profiling, underwater excavations and tunnelling
    10 models
    Details

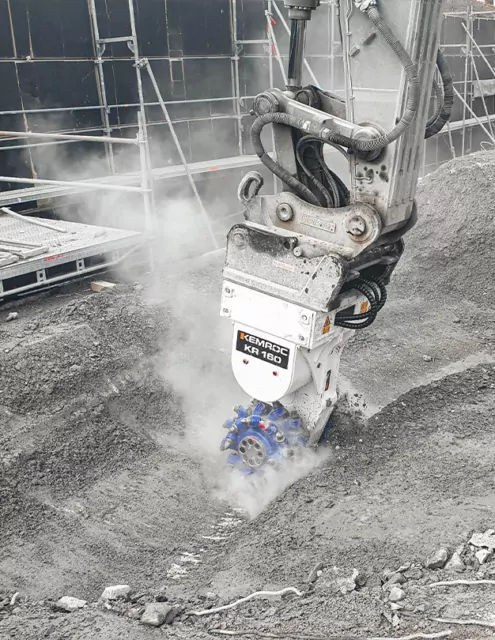

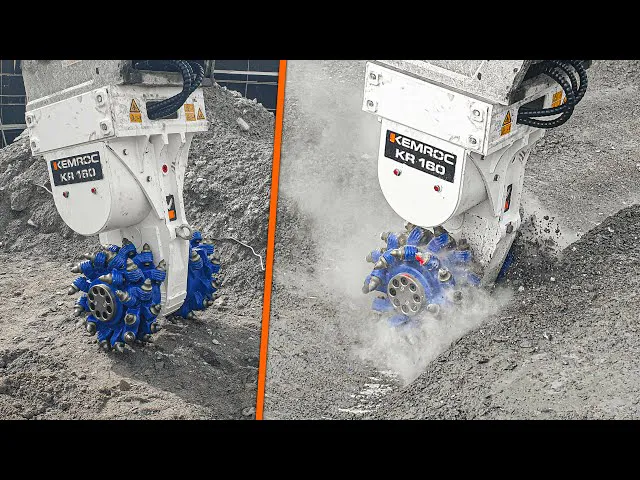

  • KR range
    Rotary drum cutters with spur gears
    Measure:
    • Recommended excavator weight
      0,6 – 125 t
      1.3K-275K lb
    • Possibility of conversation to a chain cutter
      no
      no
    Applications:
    • Tunnelling
    • Demolition
    • Also used for trenching and pipeline work, renovating concrete, profiling, mining of soft minerals and underwater excavating
    24 models
    Details

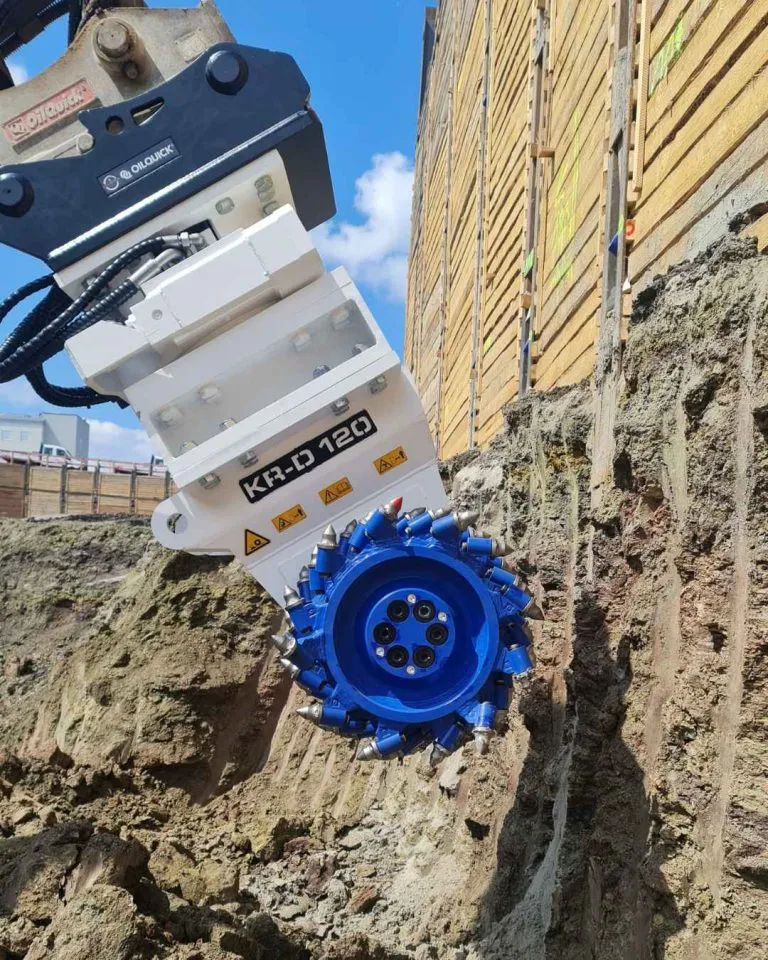

  • KRD range
    Rotary drum cutters with direct drive
    Measure:
    • Recommended excavator weight
      0,5 – 50 t
      1.1-110K lb
    • Possibility of conversation to a chain cutter
      no
      no
    Applications:
    • Demolition using long arm excavators
    • Ground stabilisation
    • Renovating concrete
    • Also used for trenching and pipeline work, profiling, mining soft minerals, underwater excavations, tunnelling and shaft sinking
    9 models
    Details
