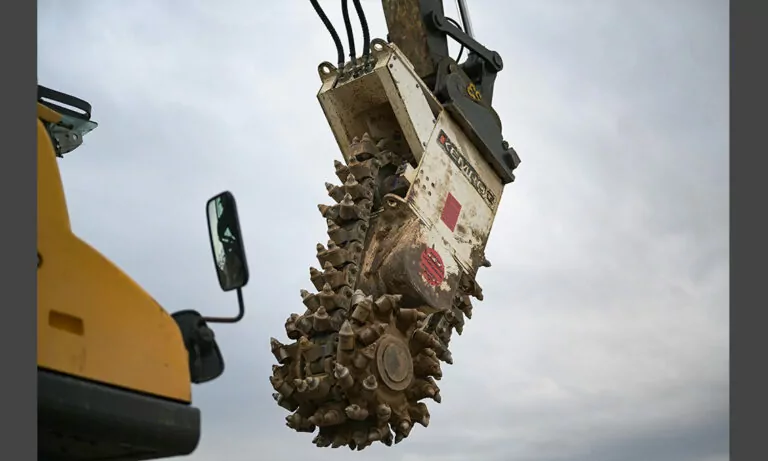

EK Chain Cutters

Chain cutters — reduce wear & tear on the excavator swing gear and save energy

  • Minimal wear on excavator as the method of operation is similar to using the bucket i.e. eliminates need for swing motion
  • Needs approx. 40 percent less energy than equivalent drum cutter without a chain between the drums
  • Range of cutting widths available
  • Fine grained cut material
  • Low noise and vibration levels
  • Works underwater without need for modifications
Chain cutters — reduce wear & tear on the excavator swing gear and save energy

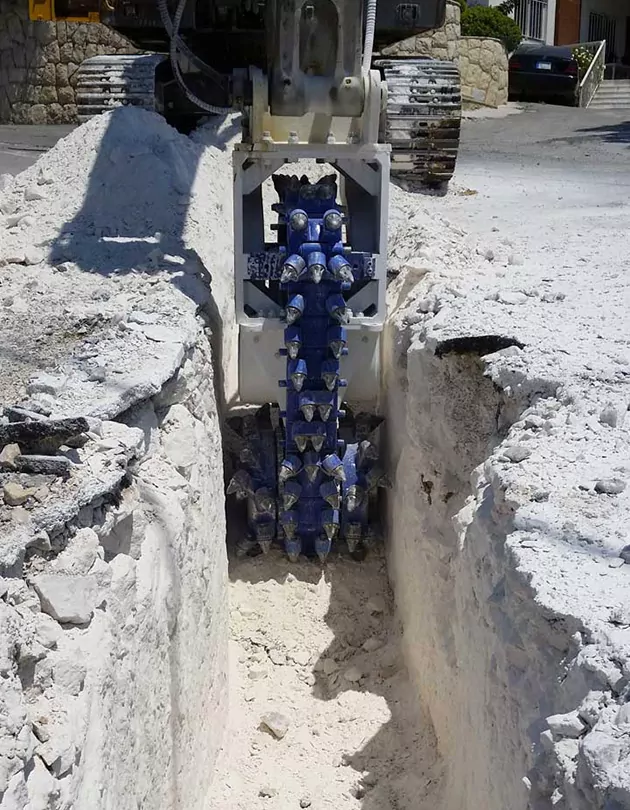

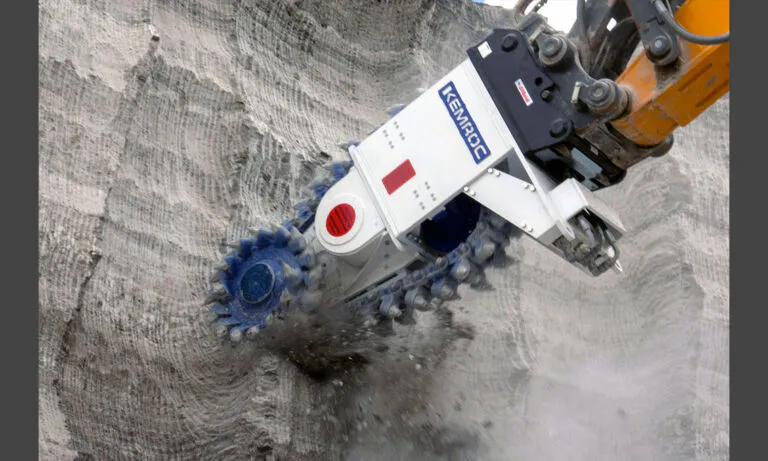

The EK range of chain cutters are the first of their type on the market. Designed for use on excavators from 2 to 70 tons, they are ideal for cutting stone with an uniaxial compressive strength up to 120 MPa. They are efficient, vibration-free attachments for the excavation of deep narrow trenches with the optimal trench profile. Trench width starts from 480 mm. Another application is mining of medium hard minerals with compressive strength from 15 to 80 MPa, where drill and blast is not possible.

KEMROC chain cutters excavate trenches no wider than absolutely necessary. The continuous chain, driven by the cutter drums, removes the material automatically from the space between the cutter drums. With standard drum cutters, the need to remove this material on technical grounds always results in trenches wider than the cutter. Keeping trenches to the minimum width possible saves unnecessary
transport costs for removal of cut material and fill material becomes cheaper. The material produced by the chain cutter is fine grained and is ideal for use as fill.

EK chain cutters reduce wear and tear on the excavator swing gear. In addition, they give a 40 percent energy saving for equivalent production rates compared to conventional rotary drum cutters without the central chain.

Measure: Compare Models
  • Cutter drum diameter (C)
  • Cutter head width (B)
  • Drum cutter length (A)
  • Max. cutting force at max. torque
  • Max. oil flow
  • Max. operating hydraulic pressure
  • Max. torque at max. hydraulic pressure
  • Max. uniaxial compressive strength
  • Number of picks in cutter drums
  • Number of picks in the cutter chain
  • Pick box
  • Rated power
  • Recommended excavator weight
  • Recommended oil flow
  • Recommended rotation speed
  • Standard pick
  • Weight
  • Width of gearbox (D)
