ES Cutter Heads

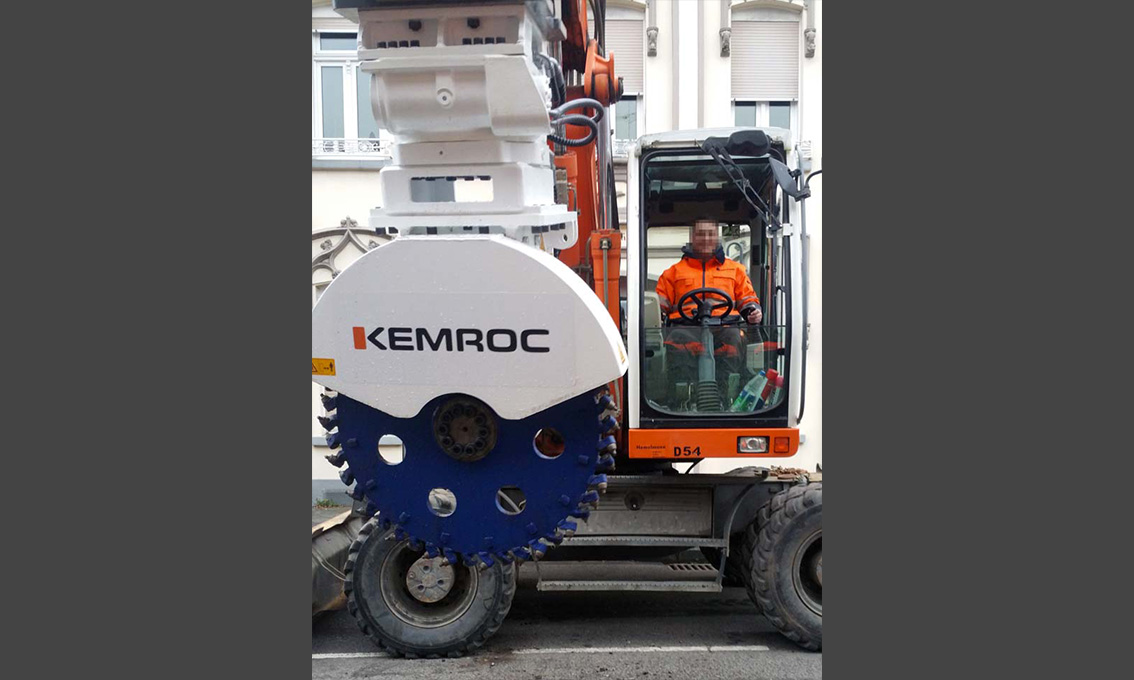

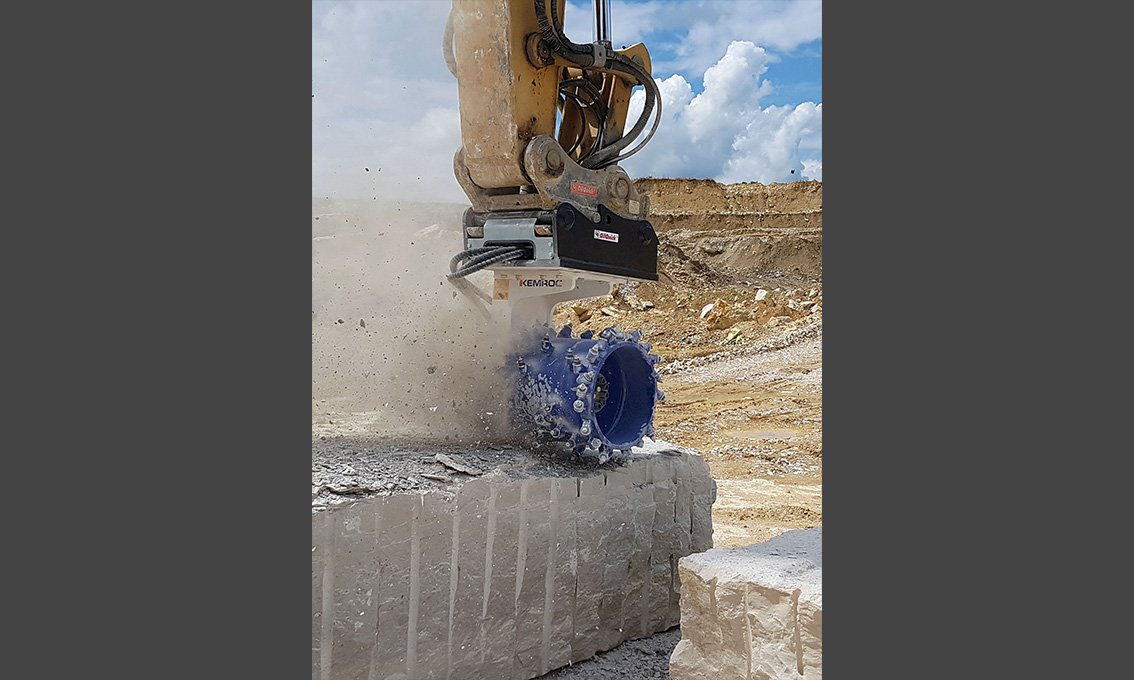

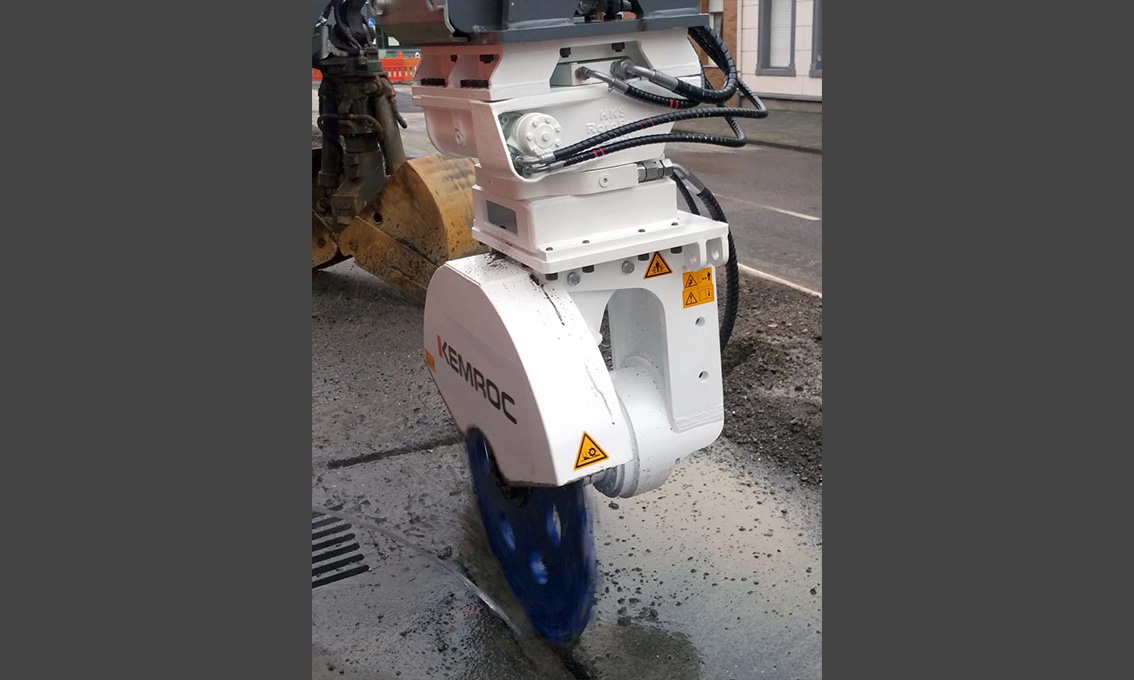

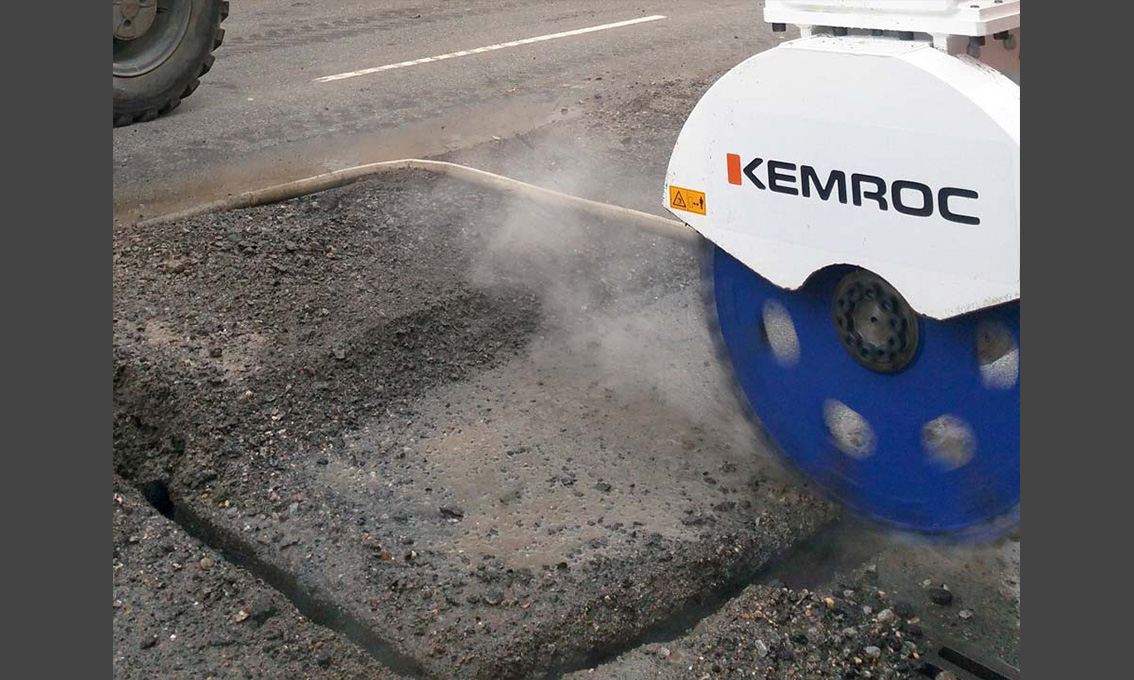

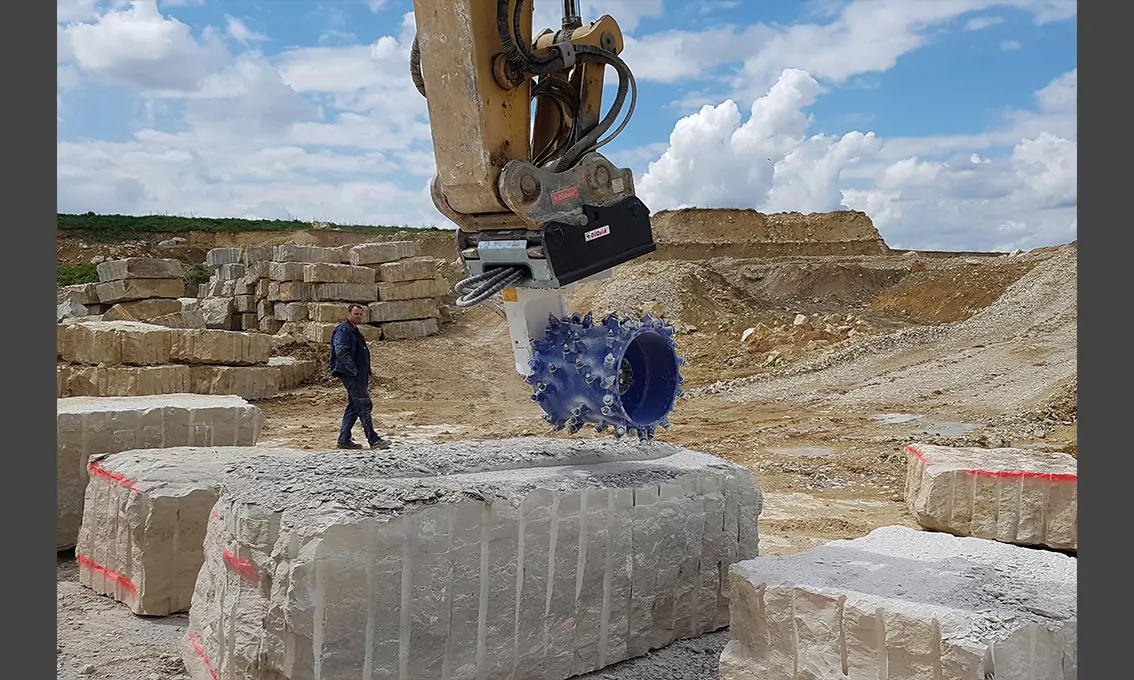

Model ES 60 HD

TECHNICAL DATA

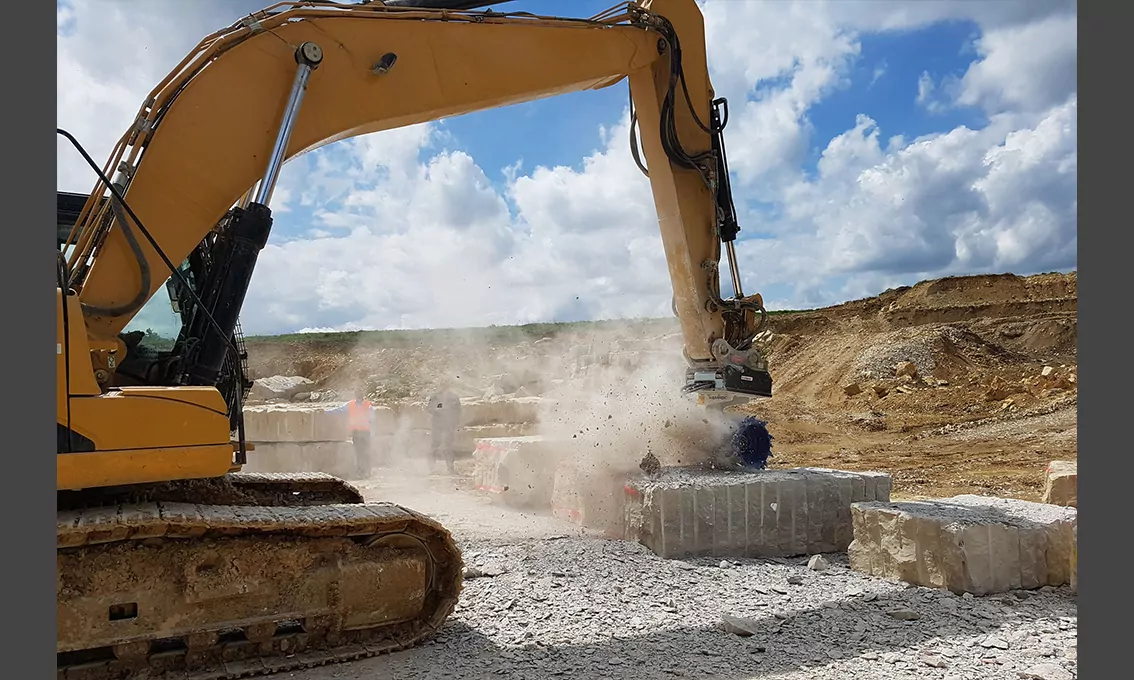

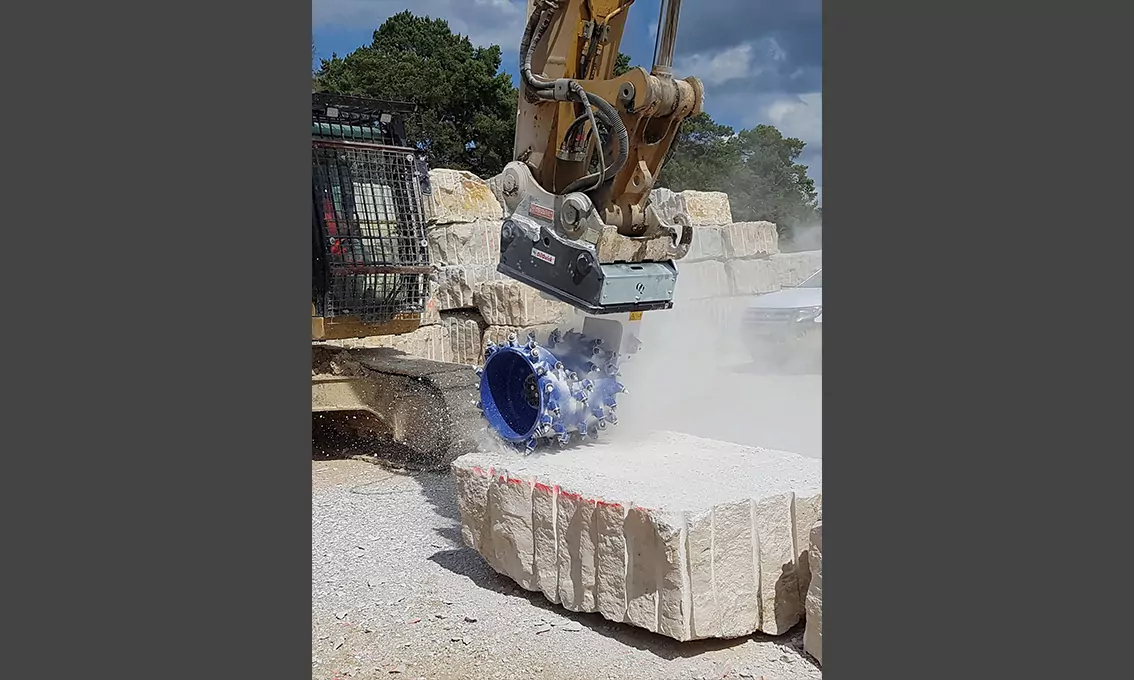

FOTOS

Measure:

Recommended excavator weight

15 – 23 t 35000 – 50000 lb
Rated power

80 kW 105 hp (80 kW)
Cutting wheel diameter (C)

670 mm 26 inch
Cutting width (B)

600 mm 24 in
Cutting depth

190 mm 7 in
Min. rpm

90 U/min 90 rpm
Min. oil flow

150 l/min 40 gal/min
Max. oil flow

210 l/min 55 gal/min
Max. operating pressure

400 bar 5800 psi (400 bar)
Torque at 380 bar

10100 Nm 7400 lbf·ft
Cutting force at 380 bar

30 kN 6800 lbf
Weigth of base drive

280 kg 617 lbs
Pick box

PH 20 Type PH 20 Type
Number of picks

69 Pcs 69 Pcs
Standard pick

16/48/32/20 H 16/48/32/20 H
Standard hole pattern

LB20 LB20
Compatible rotation unit (KRM)

KRM50 KRM50
