EX Patch Planers

Model EX 45 HD

TECHNICAL DATA

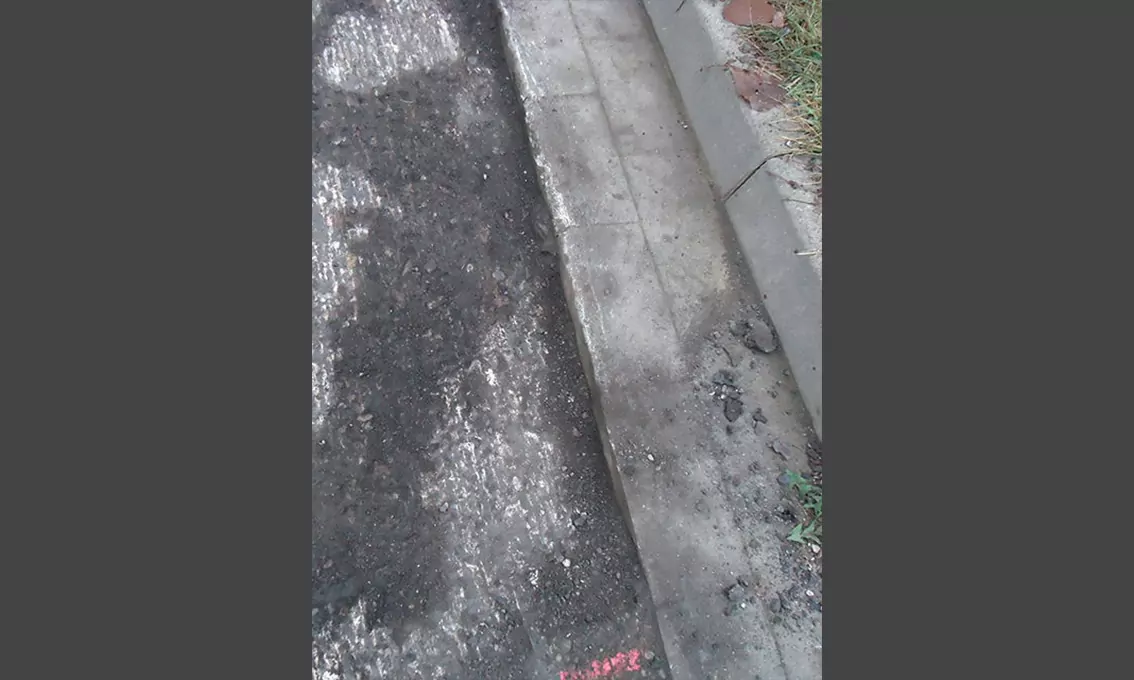

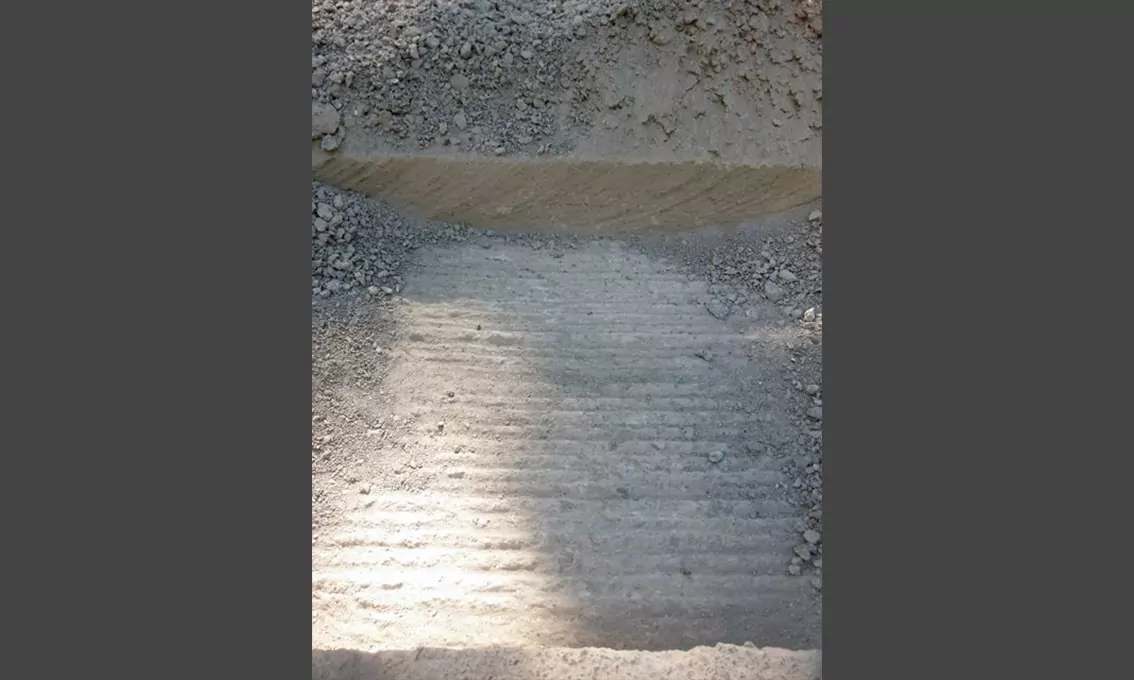

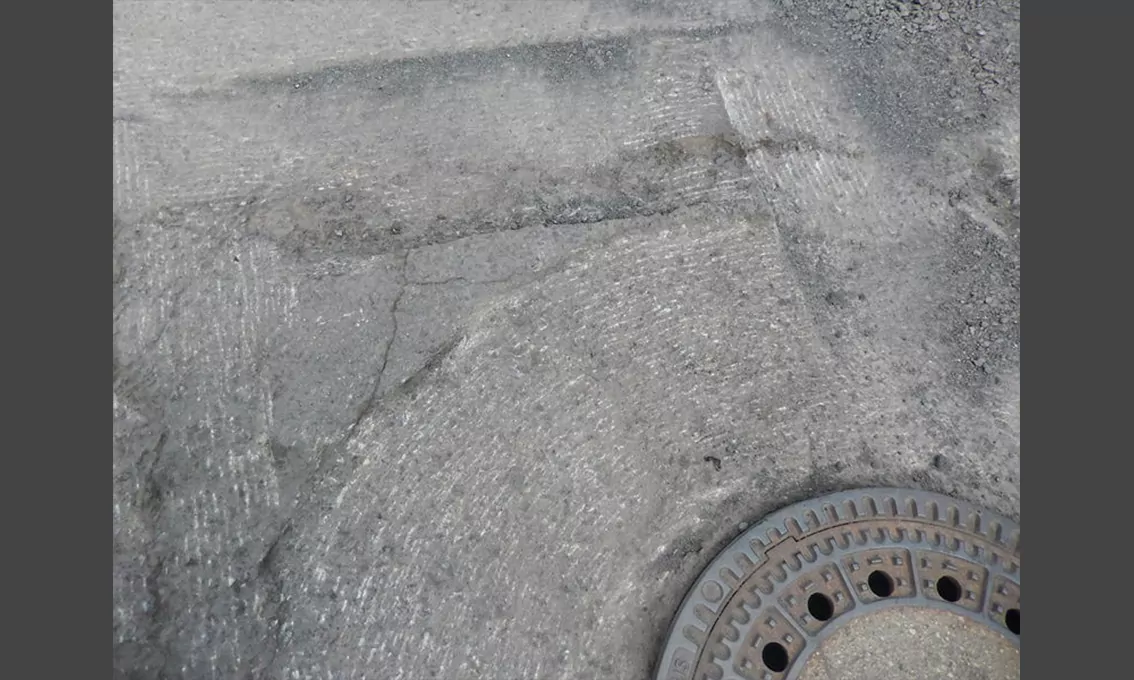

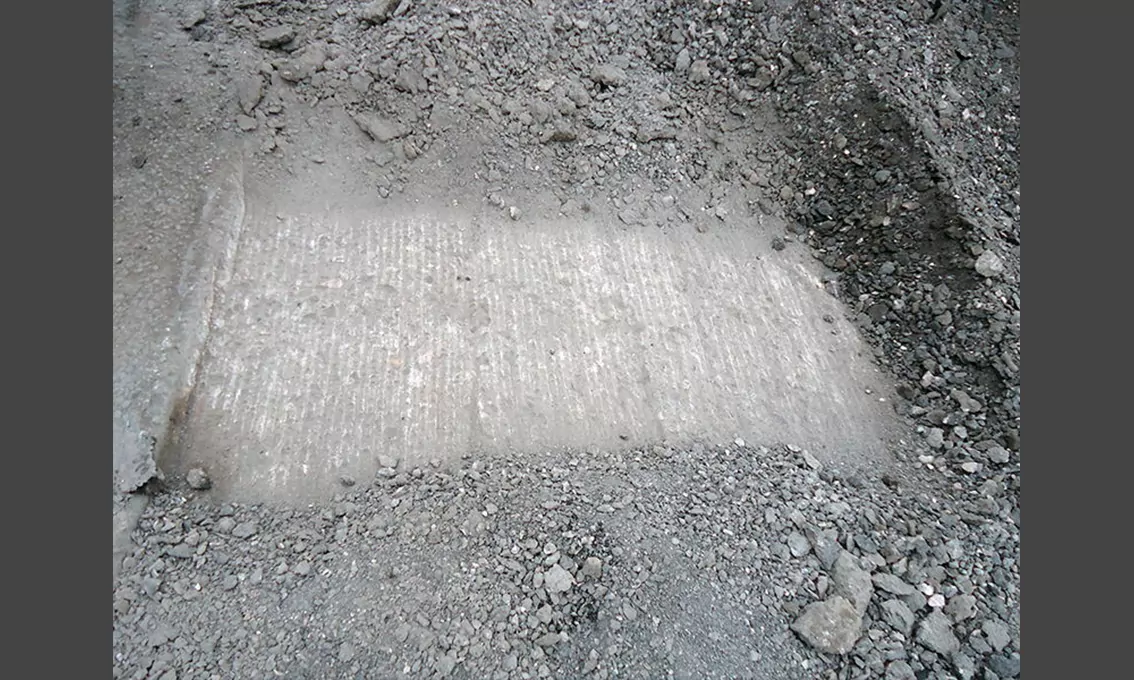

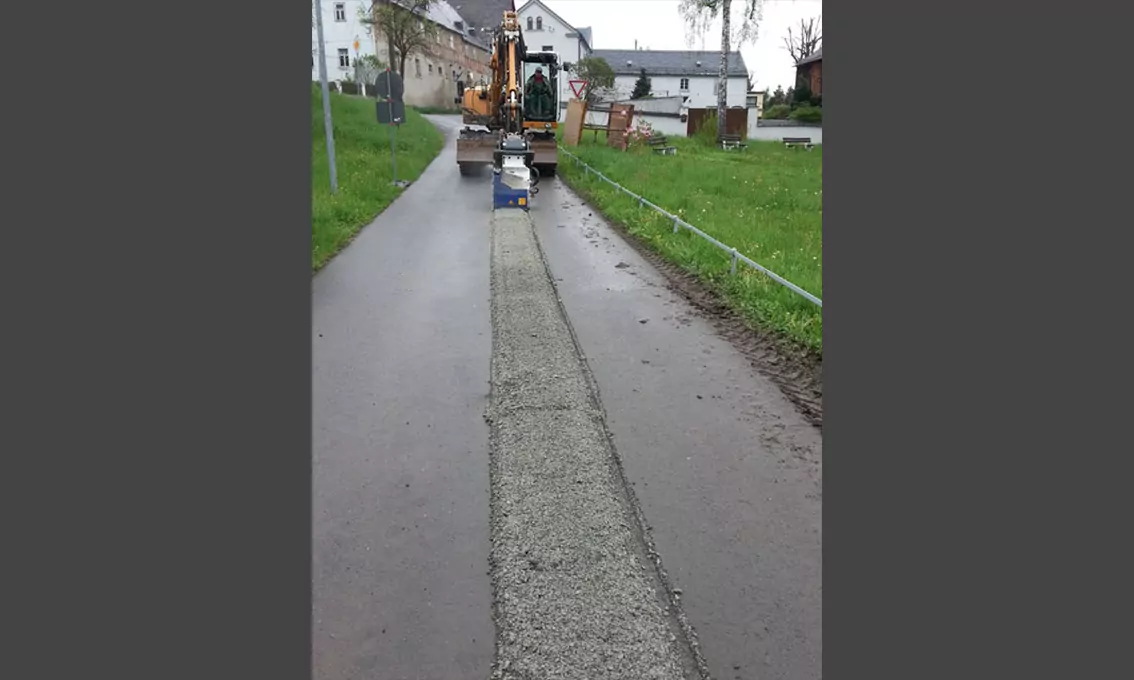

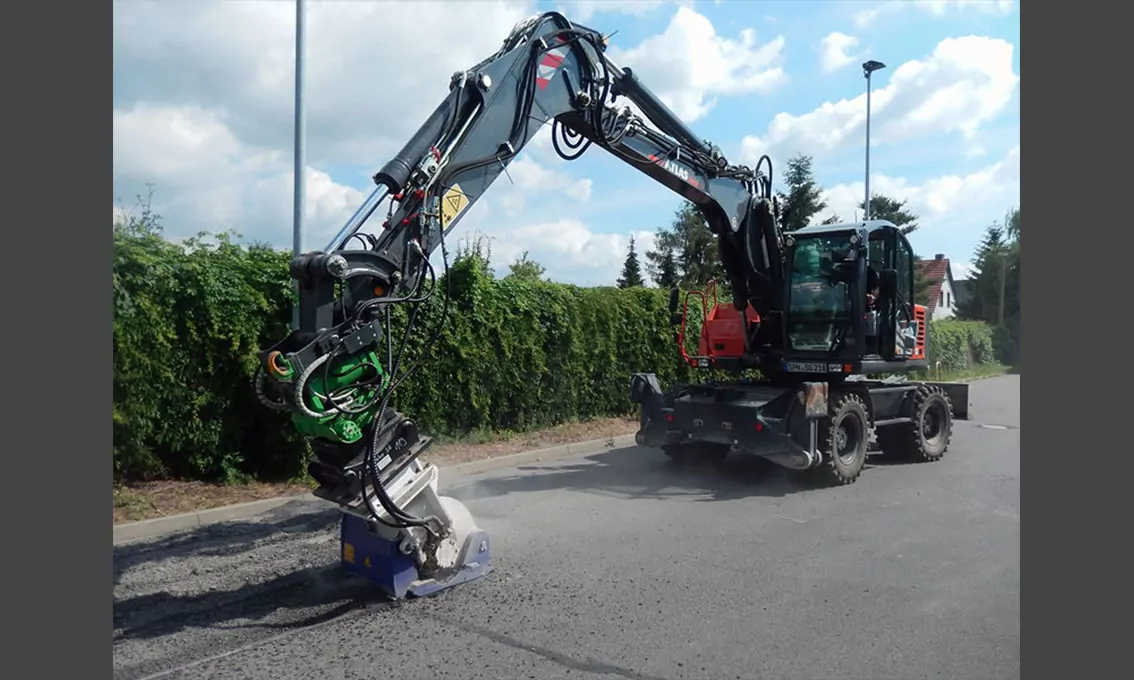

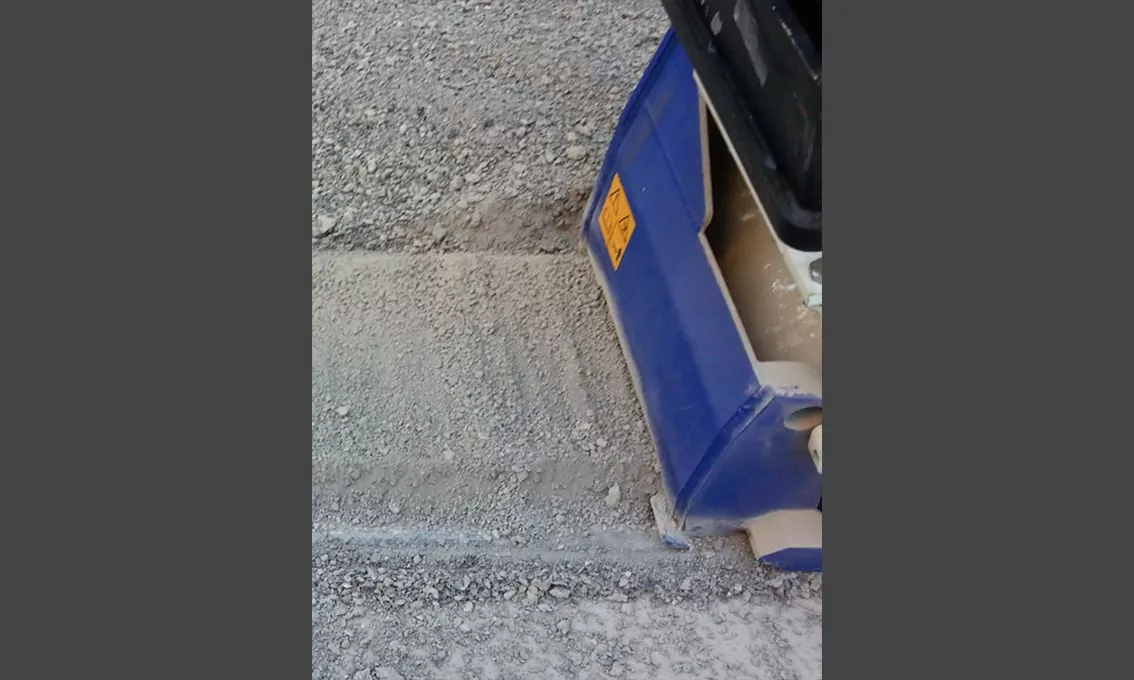

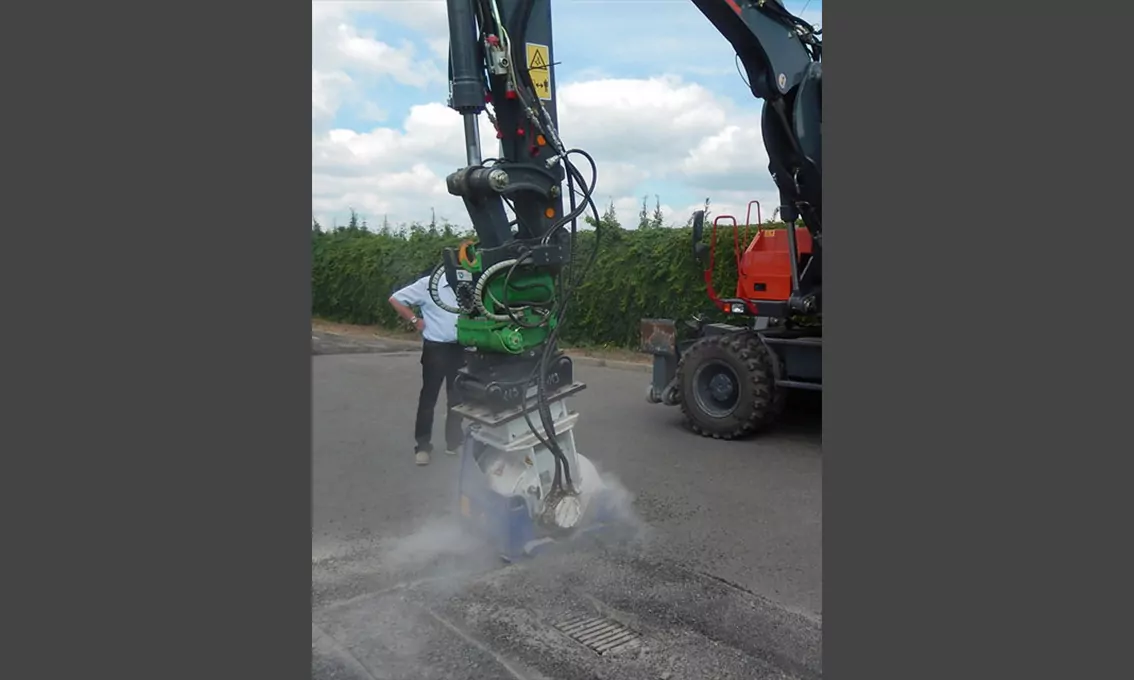

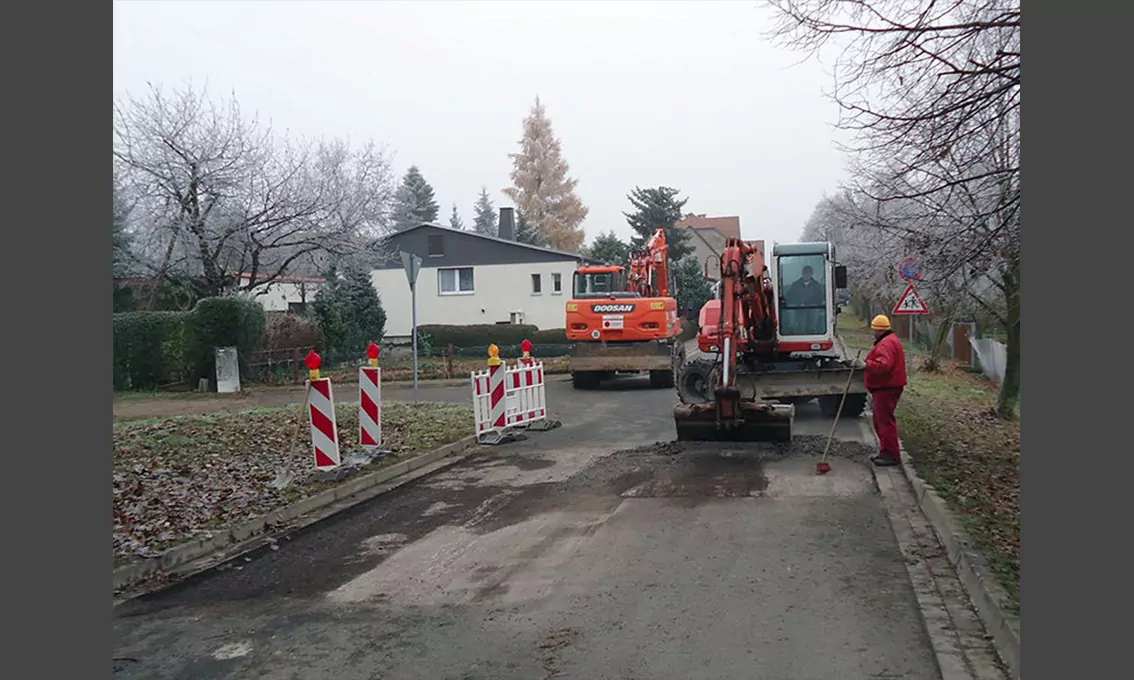

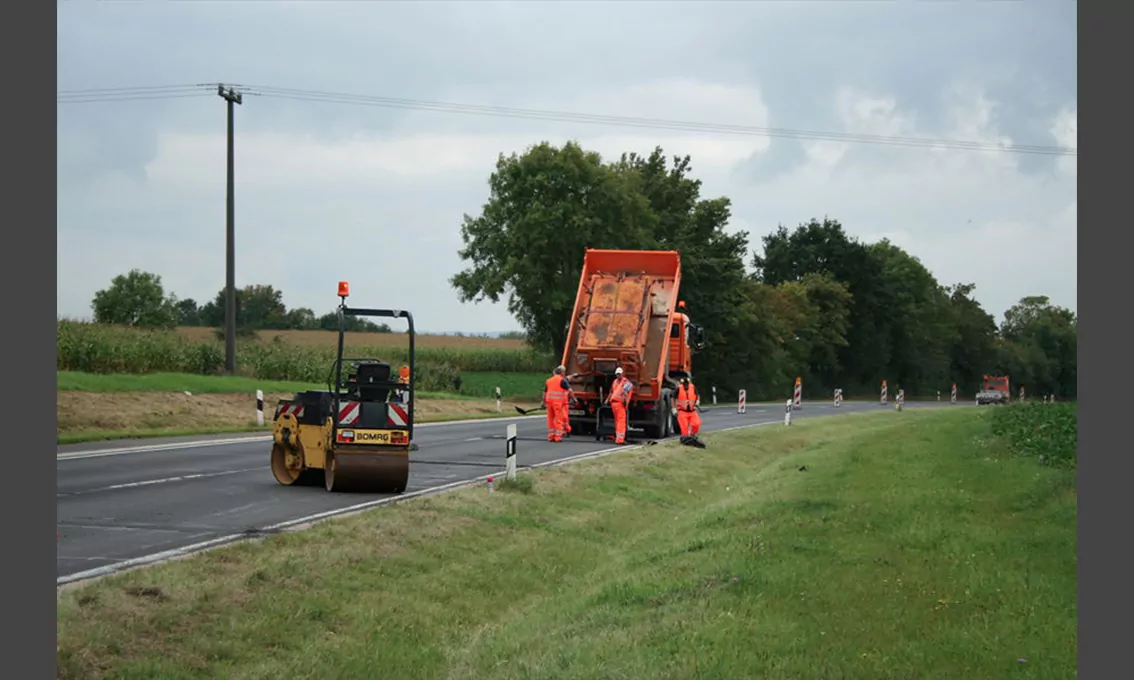

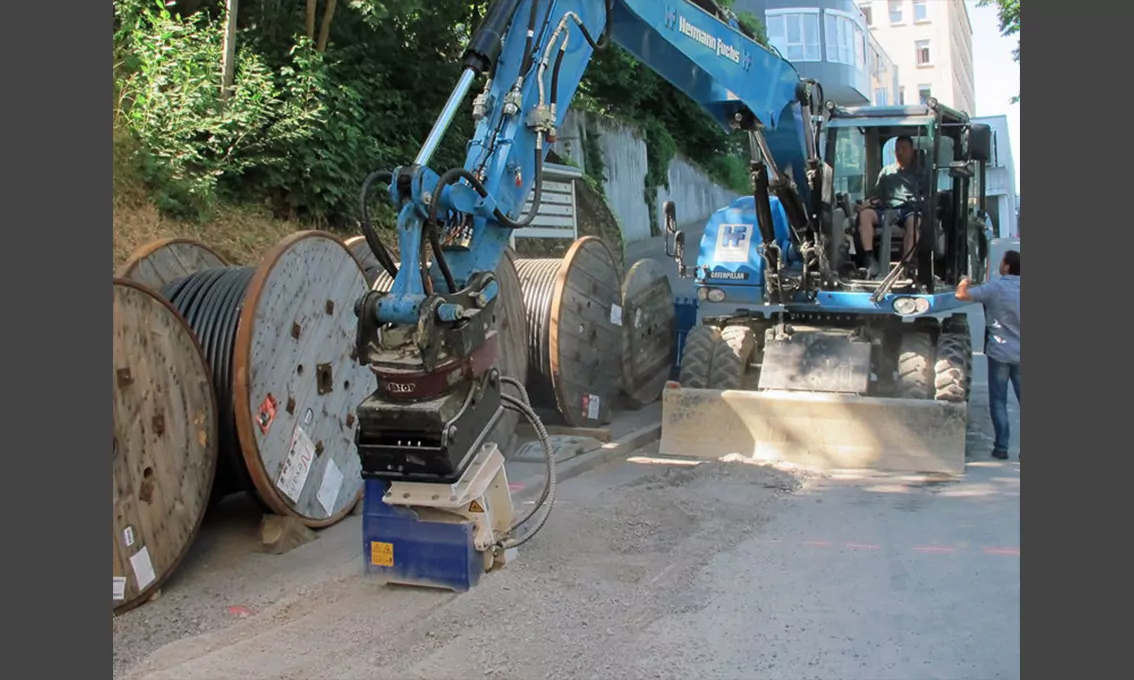

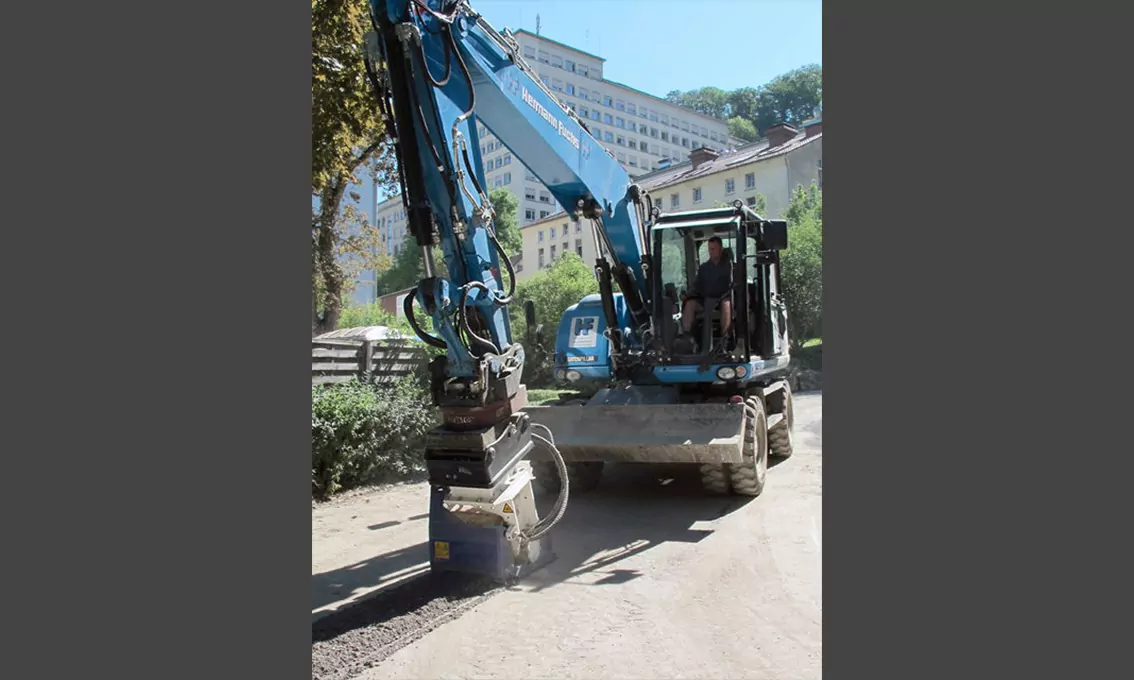

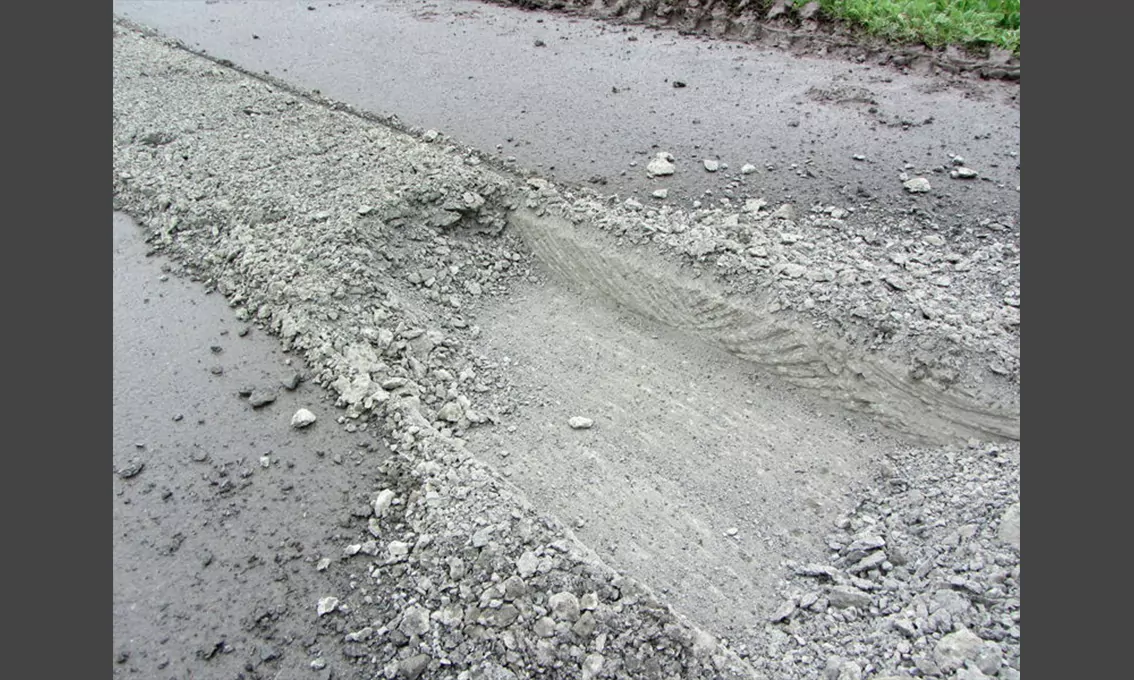

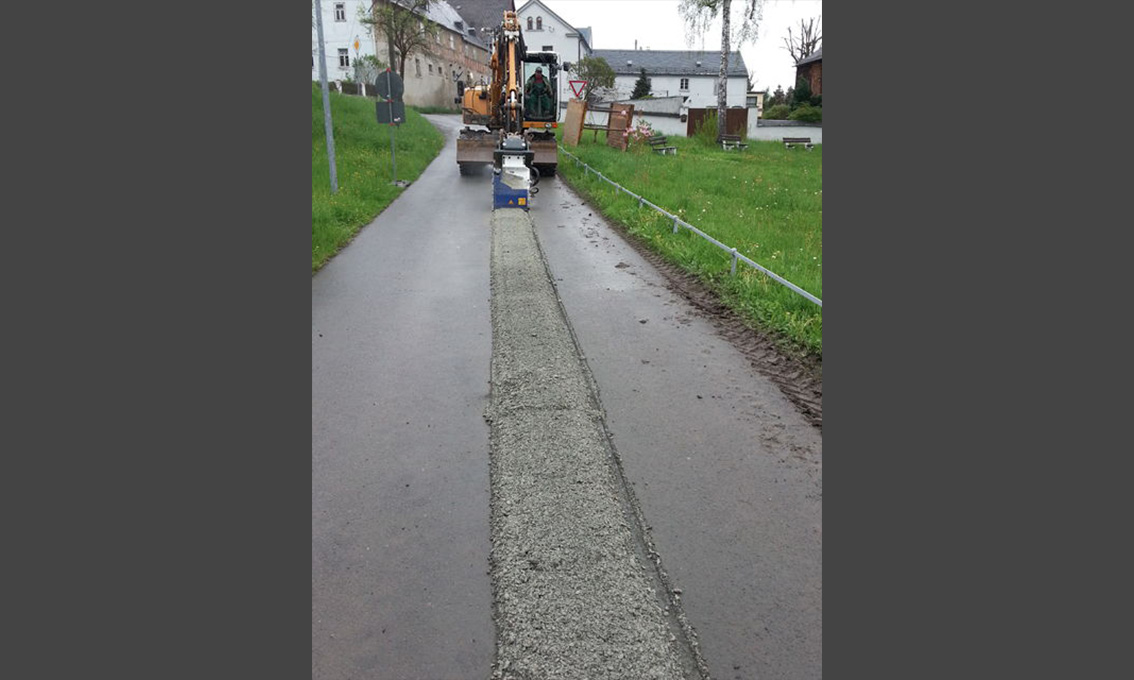

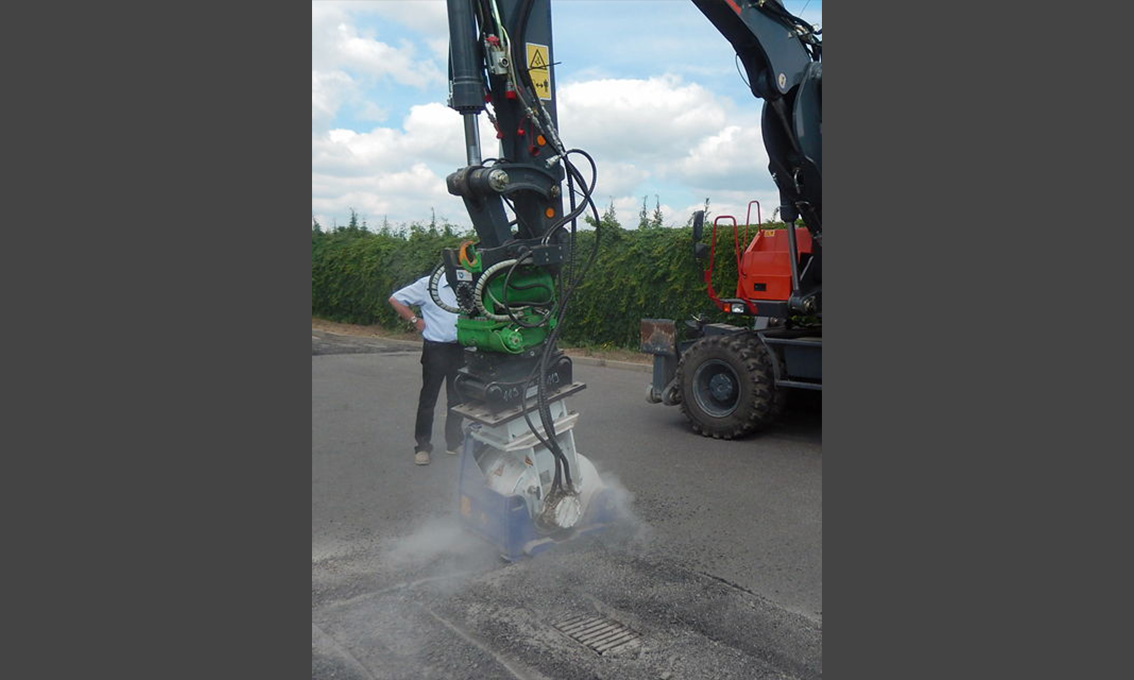

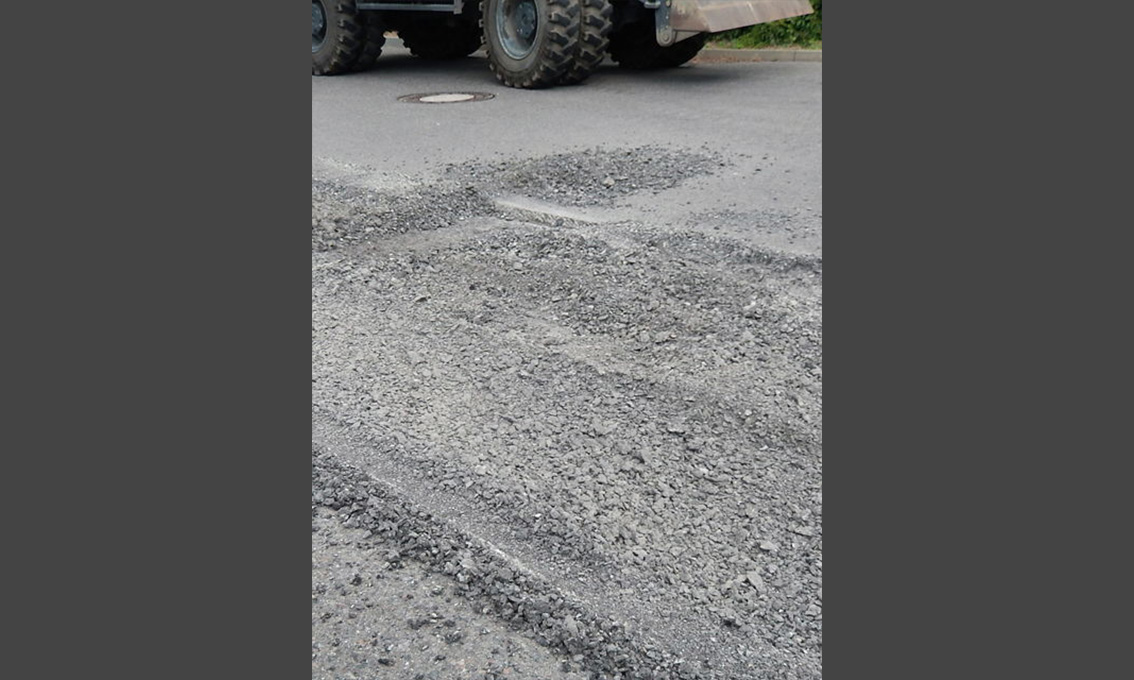

FOTOS

Measure:

Recommended excavator weight

10 – 16 t 20000 – 35000 lb
Rated power

65 kW 85 hp (65 kW)
Cutting depth, adjustable (A)

0 – 150 mm 0 – 6 in
Cutting width (B)

450 mm 18 in
Cutting wheel diameter (C)

580 mm 23 inch
Recommended rpm

100 rpm 100 rpm
Recommended oil flow at 100 bar

155 l/min 41 gal/min
Max. oil flow

180 l/min 48 gal/min
Max. operating pressure

380 bar 5510 psi (380 bar)
Torque at 350 bar

8700 Nm 6400 lbf.ft
Cutting force at 350 bar

30 KN 6700 lbf
Total weight

730 kg 1609 lbs
Pick box

PH 20 Type PH 20 Type
Number of picks

49 Pcs 49 Pcs
Standard pick

16/48/32/20 H 16/48/32/20 H
Standard hole pattern

LB20 LB20
Compatible rotation unit (KRM)

KRM30 KRM30
