EX Patch Planers

Model EX 60 HD

TECHNICAL DATA

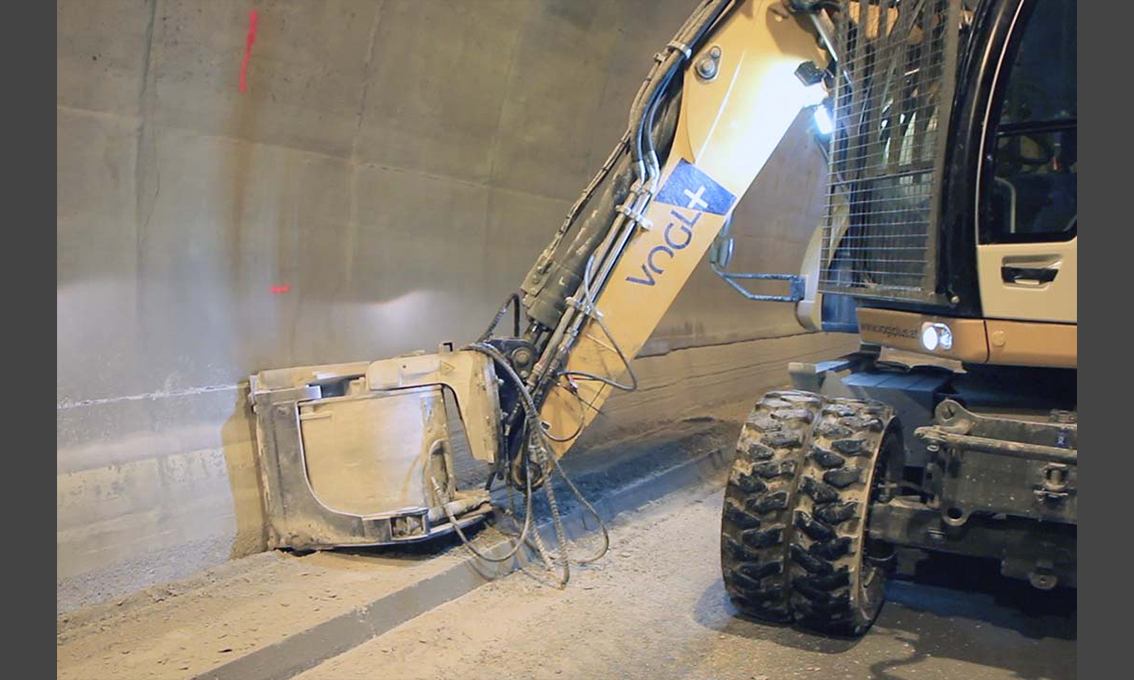

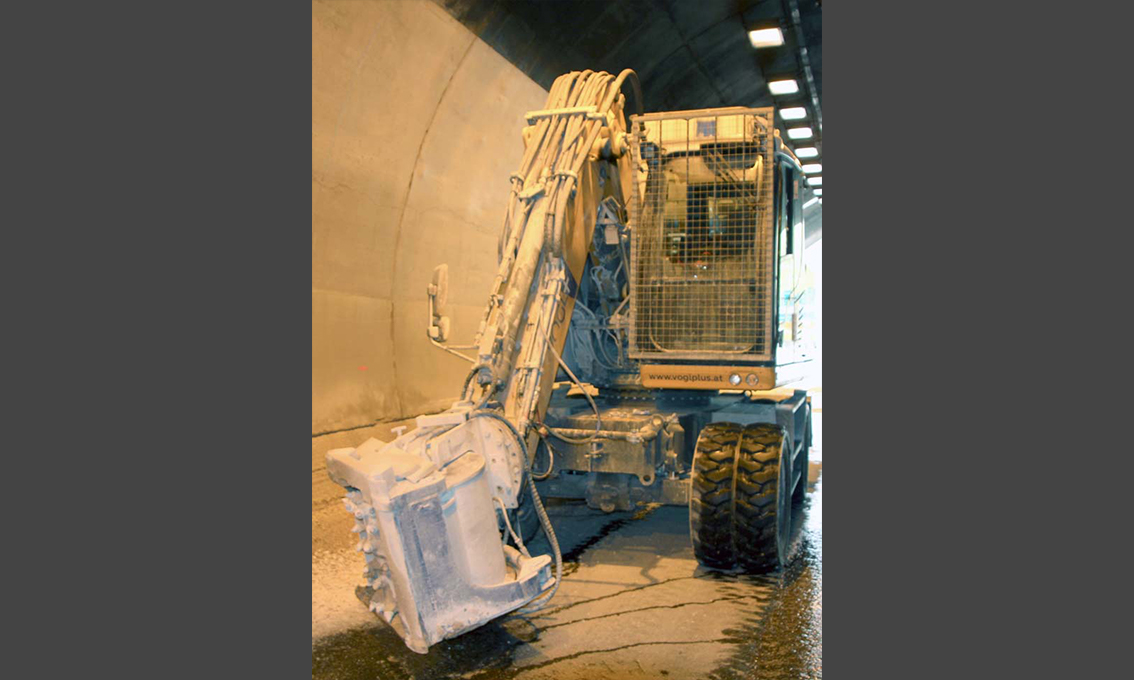

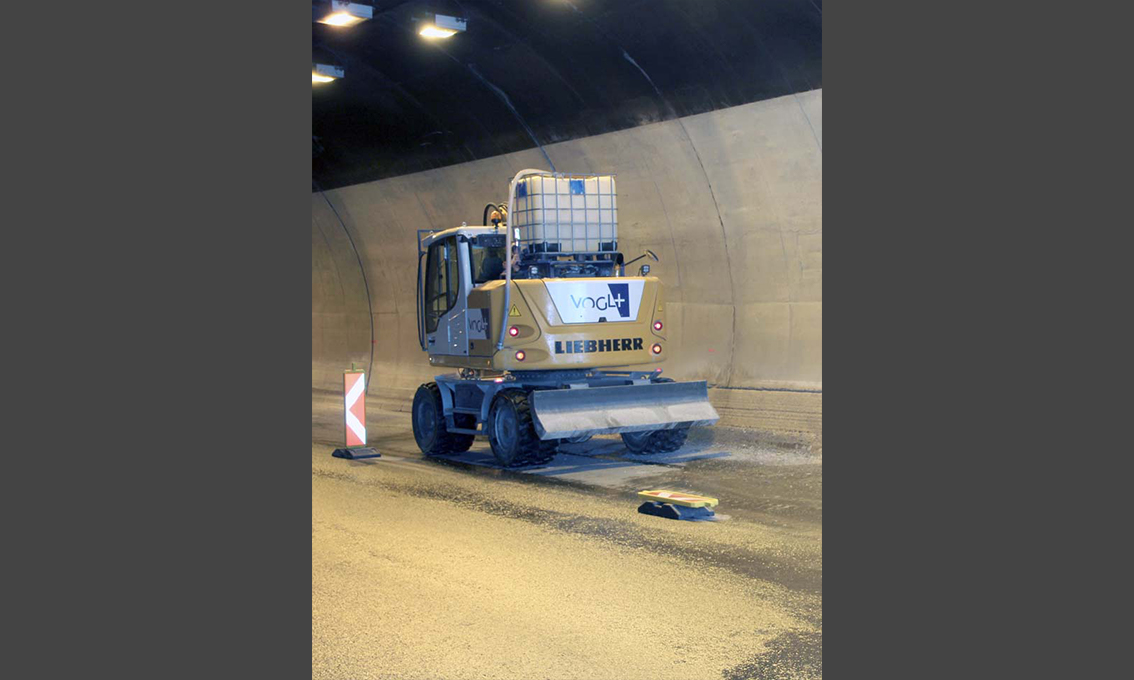

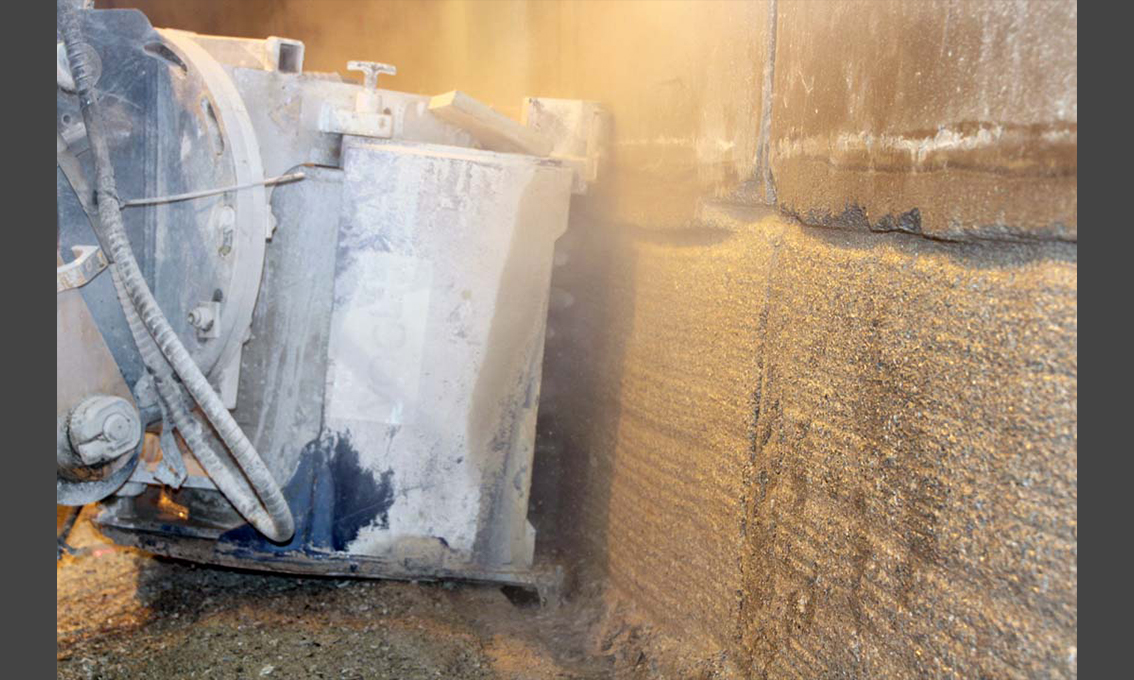

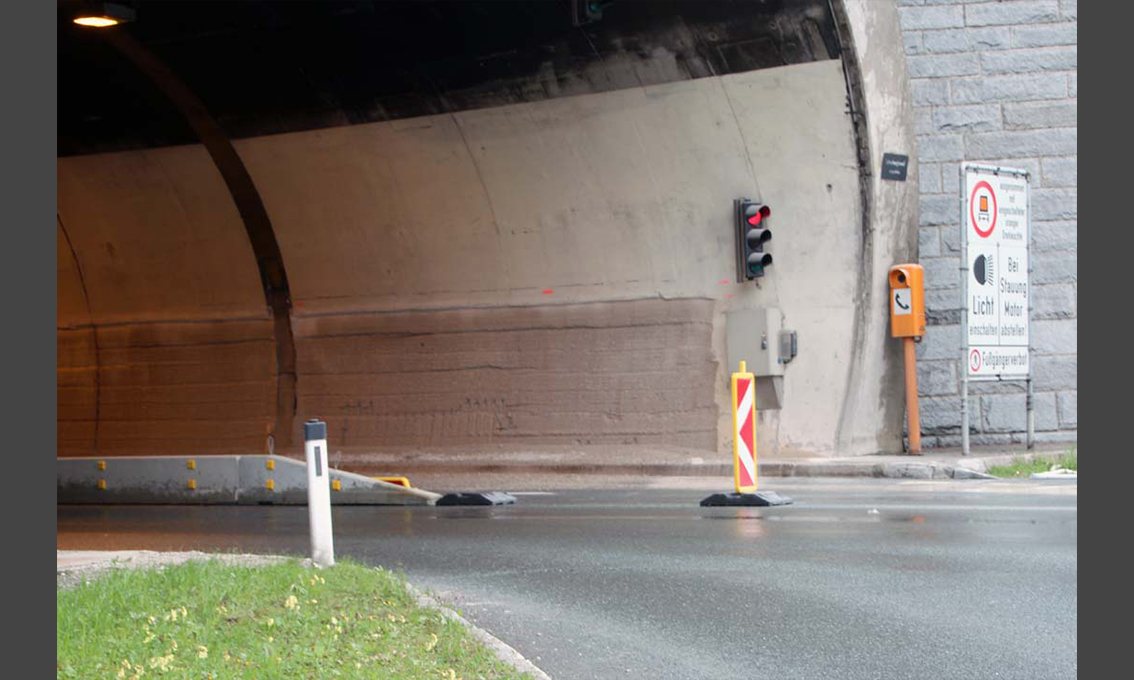

FOTOS

Measure:

Recommended excavator weight
15 – 23 t 33,000 – 50,000 lb
Rated power
80 kW 108 hp (80 kW)
Cutting width, standard (A)
600 mm 24 in
Cutting depth, adjustable (B)
0 – 190 mm 0 – 8 in
Recommended rotation speed
70 – 95 rpm 70 – 95 rpm
Recommended oil flow at 100 bar
150 – 200 l/min 40 – 52 gal/min
Min. oil flow
150 l/min 40 gal/min
Max. oil flow
210 l/min 56 gal/min
Max. operating hydraulic pressure
380 bar 5,500 psi (380 bar)
Torque at 350 bar
9,300 Nm 6,900 lbf·ft
Cutting force at 350 bar
28 kN 6,300 lbf
Operating weight
1.230 kg 2,710 lb
Pick box
PH 20 Type PH 20 Type
Number of picks
69 Pcs 69 Pcs
Standard pick
ER 19/48/36/20 H ER 19/48/36/20 H
