KDS Diamond Saws

Model KDS 50

TECHNICAL DATA

VIDEO

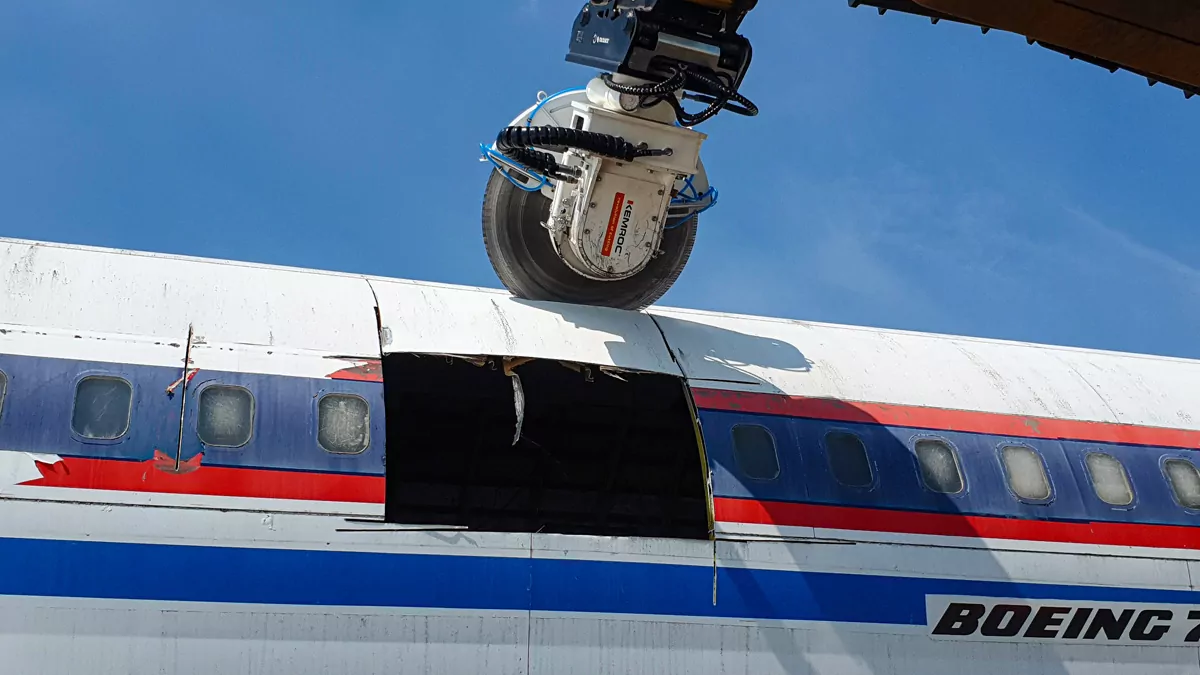

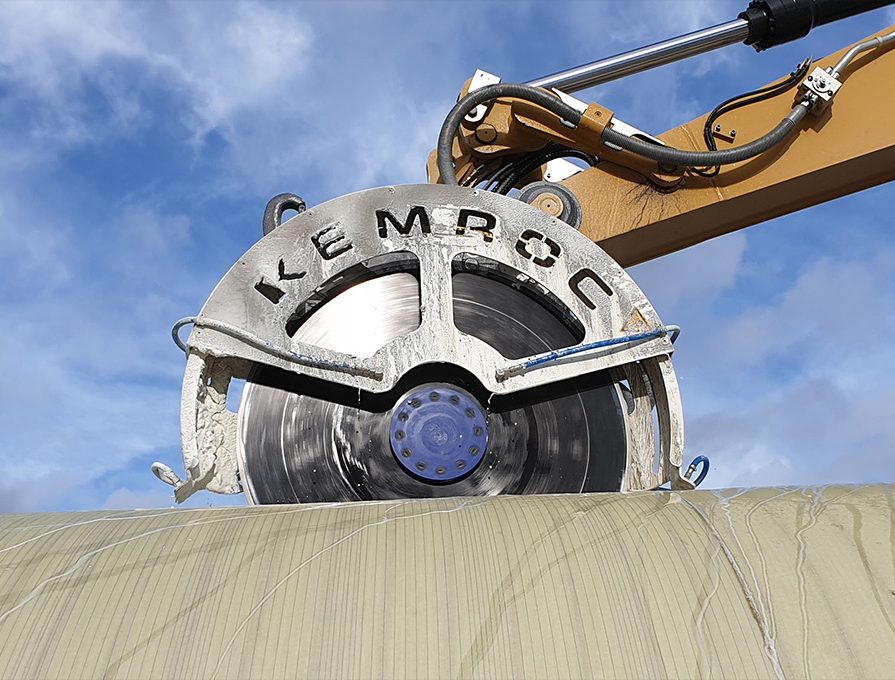

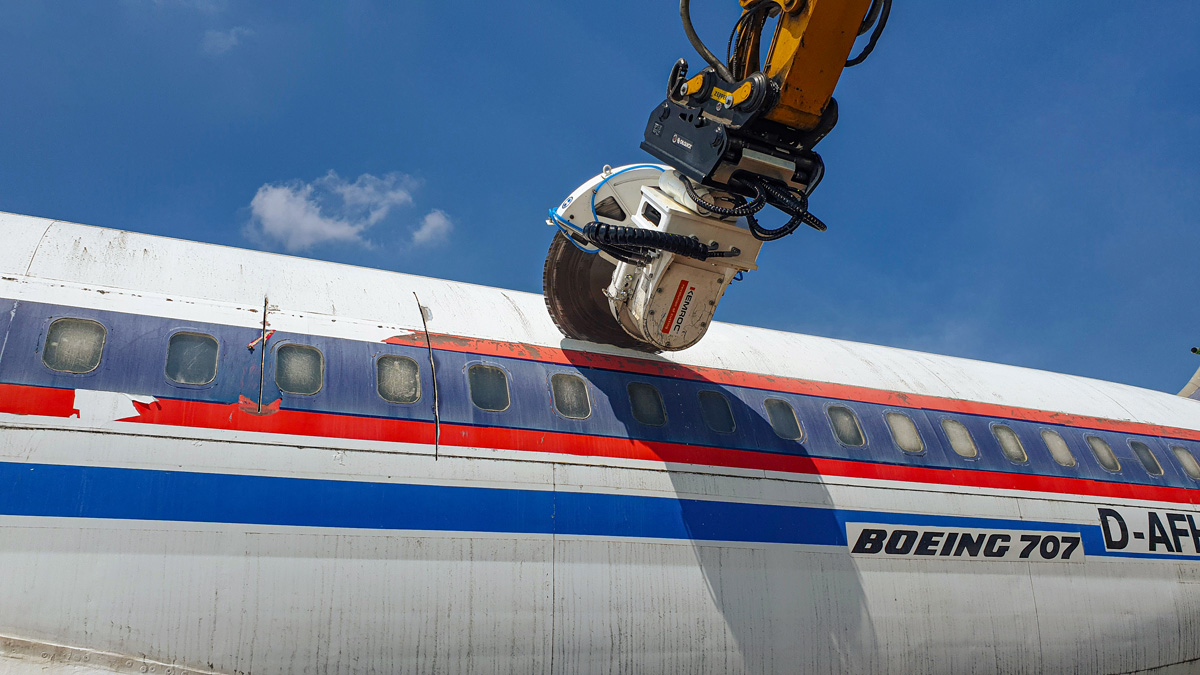

FOTOS

Measure:

Recommended excavator weight
15 – 25 t 35,000 – 55,000 lb
Max. Rated power
85 KW 115 hp (85 kW) hp
Max. Cutting depth (A)
705 mm 28 inch
Cutting wheel diameter (C)
800 | 2000 mm 31 | 79 in
Max. Cutting wheel diameter (C)
1800 mm 71 inch
Max. rpm
1100 rpm 1,100 rpm
Recommended rpm
420 – 1000 rpm 420 – 1,000 rpm
Recommended oil flow
55 – 130 l/min 15-34 gal/min
Max. operating pressure
350 bar 5,080 psi (350 bar)
Torque at 350 bar
700 Nm 500 lbf.ft
Weight of drive unit, approx.
420 kg 926 lb
Weight of protective cover
90 |190 kg 198 | 419 lbs
Weight of cutting wheel
100 kg 220 lb
Max. total weight
610 | 710 kg 1345 | 1565 lbs
Standard hole pattern
LB20 LB20
Compatible rotation unit (KRM)
KRM30 KRM30
