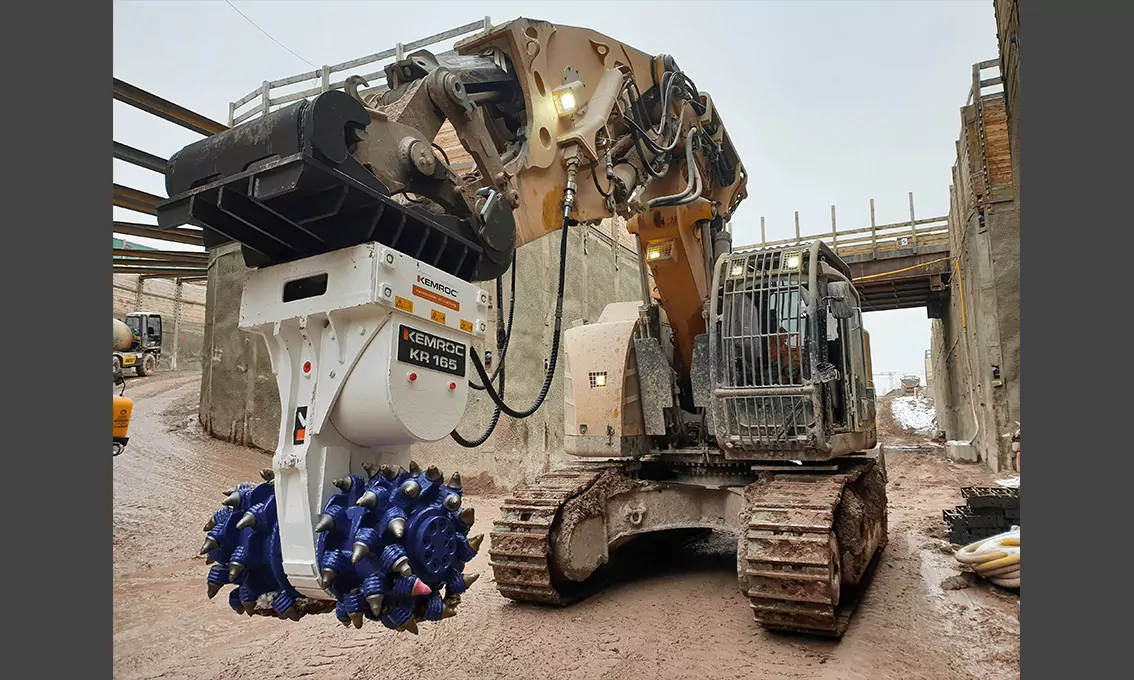

Model KR 165

TECHNICAL DATA

VIDEO

FOTOS

Measure:

Recommended excavator weight

35 – 55 t 75K – 120K lb
Rated power

160 kW 215 hp (160 kW)
Drum cutter length (A)

1590 mm 63 in
Cutting width (B)

1250 mm 49 in
Cutter drum diameter (C)

720 mm 28 in
Recommended rpm

65 rpm 65 rpm
Recommended oil flow

380 l/min 100 gal/min
Max. oil flow

400 l/min 106 gal/min
Max. operating pressure

400 bar 5800 psi (400 bar)
Torque at 380 bar

36400 Nm 26850 lbf·ft
Cutting force at 380 bar

101.1 kN 22730 lbf
Max. rock compressive strength

110 MPa 16000 psi
Weight per cutting width

2800 kg 6175 lbs
Pick box

PH 32 HD Type PH 32 HD Type
Number of picks

64 Pcs 64 Pcs
Standard pick

19/75/70/30 Q 19/75/70/30 Q
Compatible rotation unit (KRM)

KRM70 KRM70
