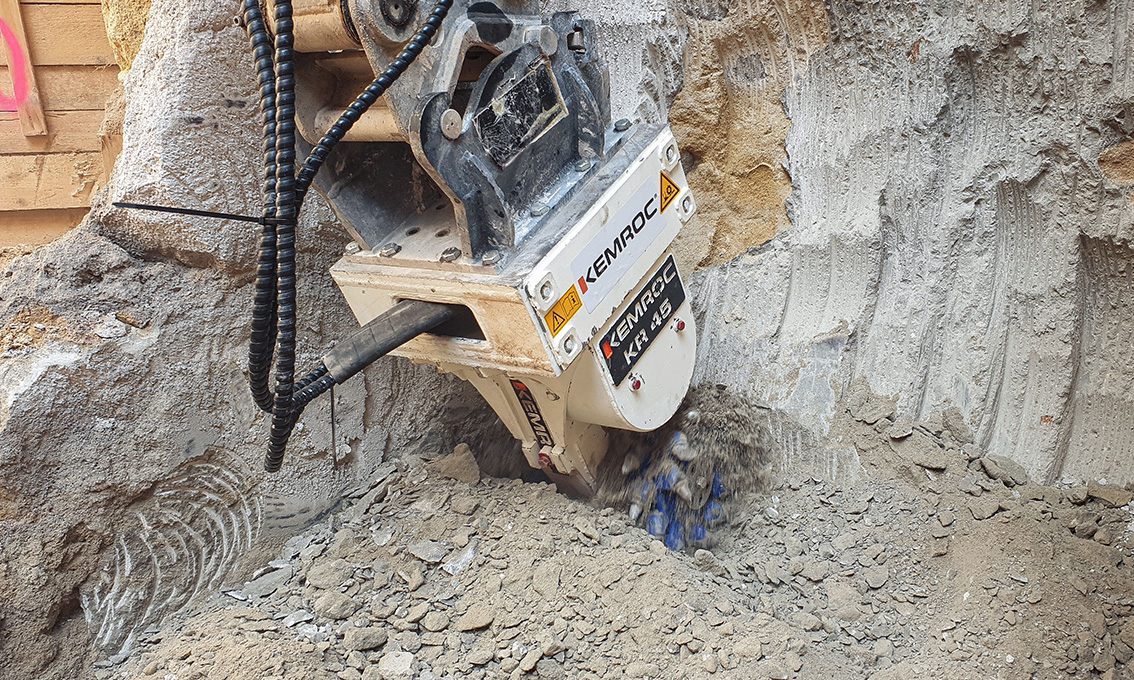

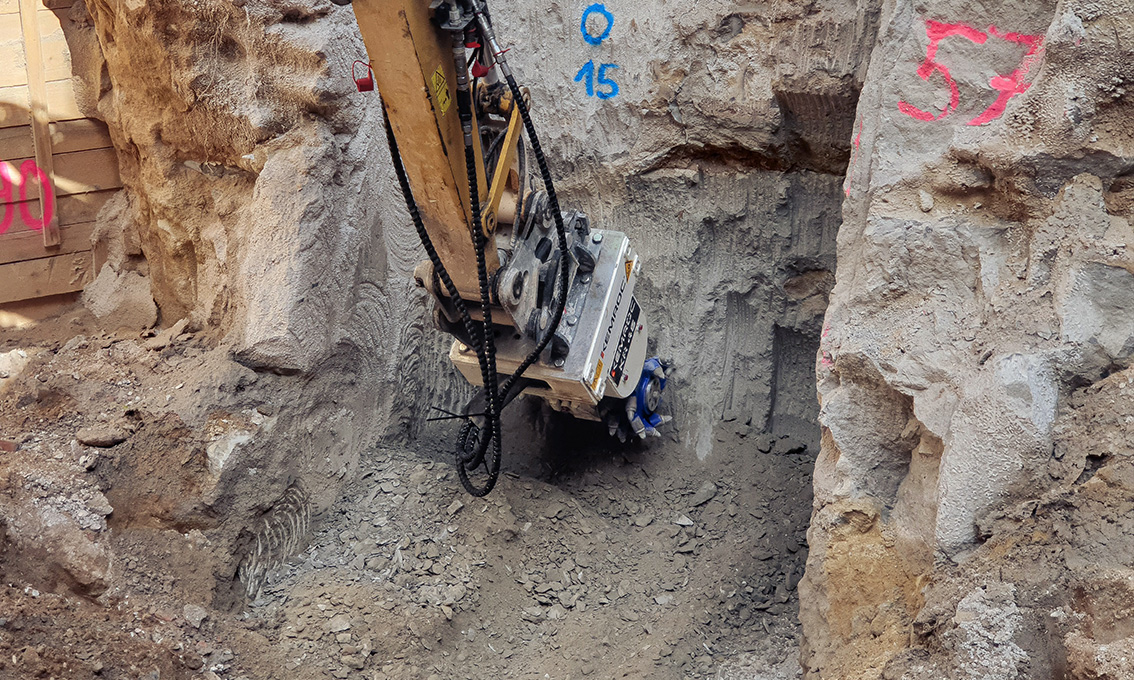

Model KR 45

TECHNICAL DATA

VIDEO

FOTOS

Measure:

Recommended excavator weight

9 – 15 t 20K – 35K lb
Rated power

45 kW 60 hp (45 kW)
Drum cutter length (A)

990 mm 39 in
Cutting width (B)

600 mm 24 in
Cutter drum diameter (C)

400 mm 16 in
Recommended rpm

105 rpm 105 rpm
Recommended oil flow

105 l/min 28 gal/min
Max. oil flow

145 l/min 38 gal/min
Max. operating pressure

400 bar 5800 psi (400 bar)
Torque at 380 bar

6100 Nm 4500 lbf·ft
Cutting force at 380 bar

30.7 kN 6900 lbf
Max. rock compressive strength

40 MPa 5800 psi
Weight per cutting width

500 kg 1100 lbs
Pick box

PH 20 Type PH 20 Type
Number of picks

44 Pcs 44 Pcs
Standard pick

16/46/38/20 C 16/46/38/20 C
Standard hole pattern

LB20 LB20
Compatible rotation unit (KRM)

KRM40 KRM40
