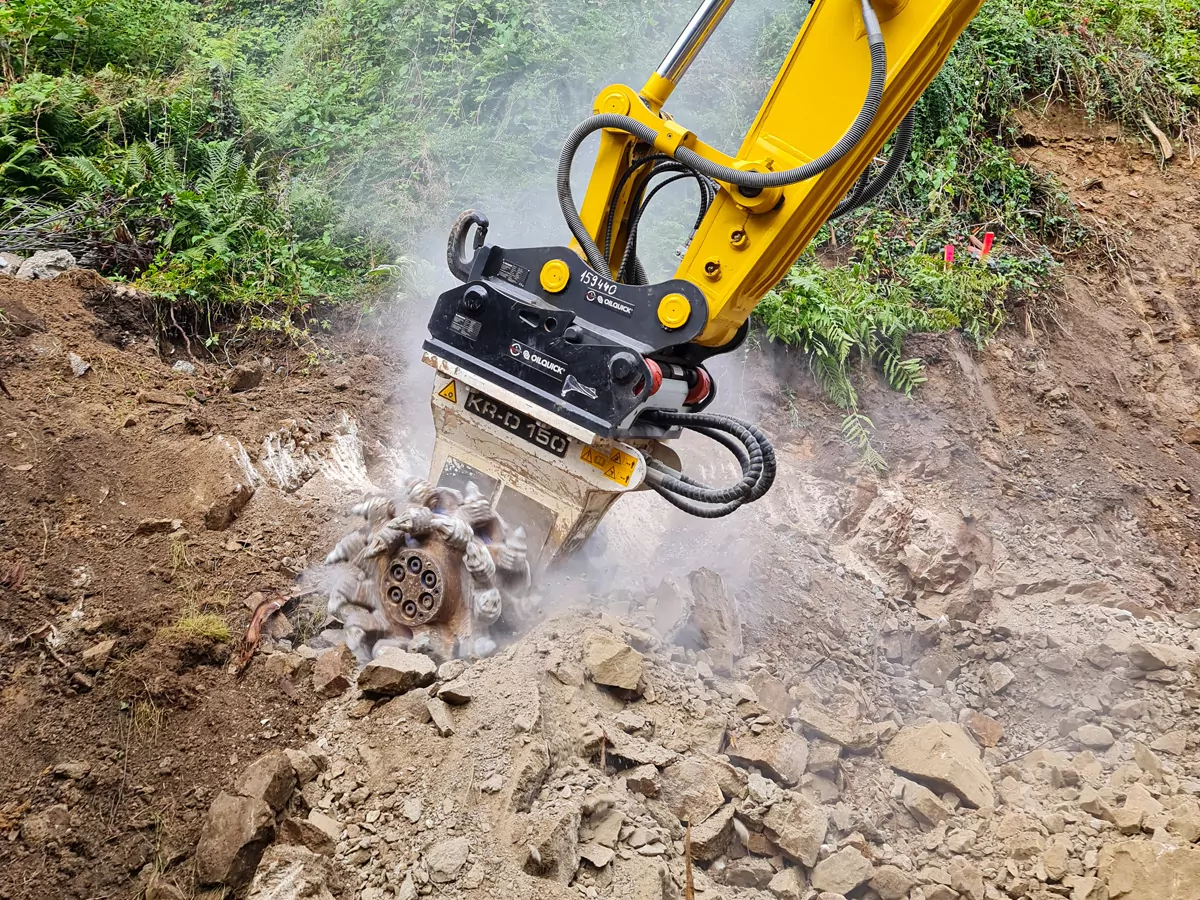

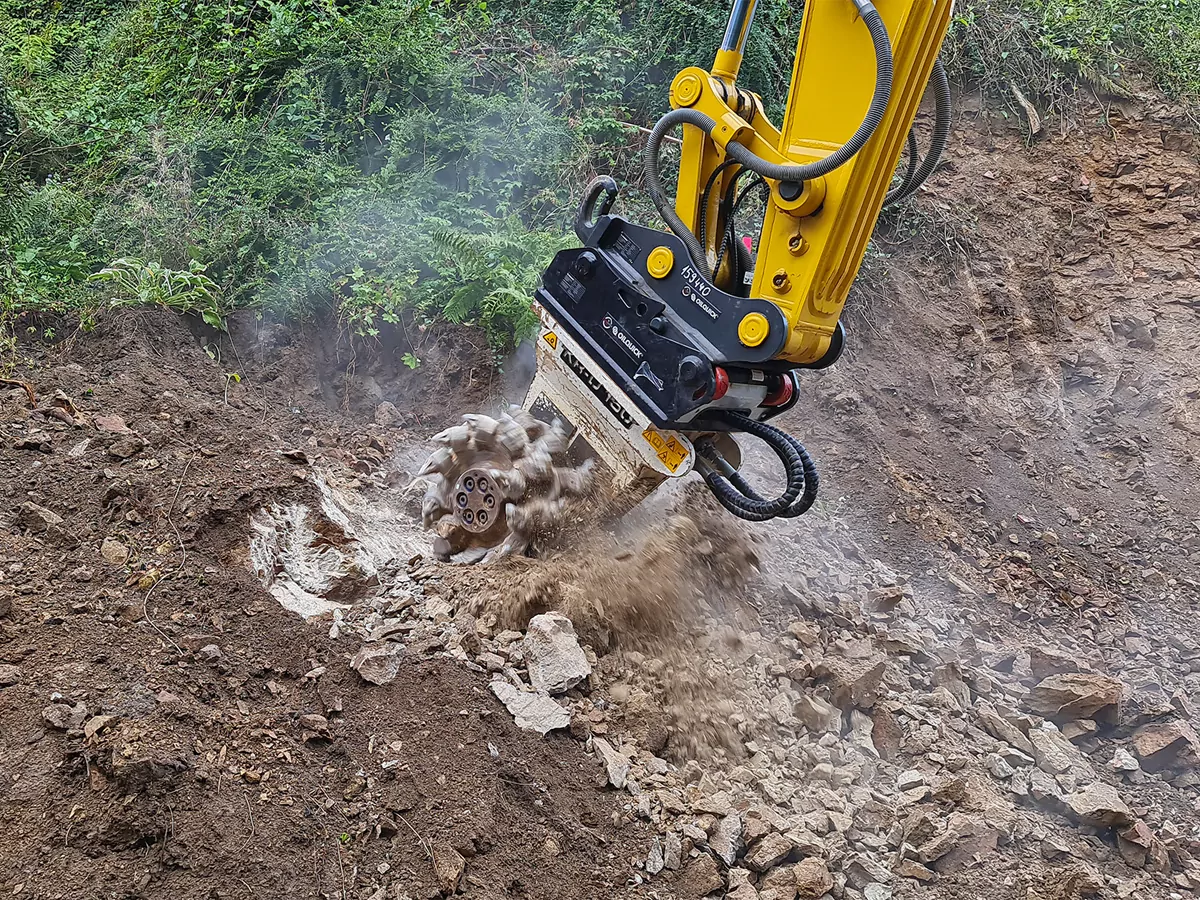

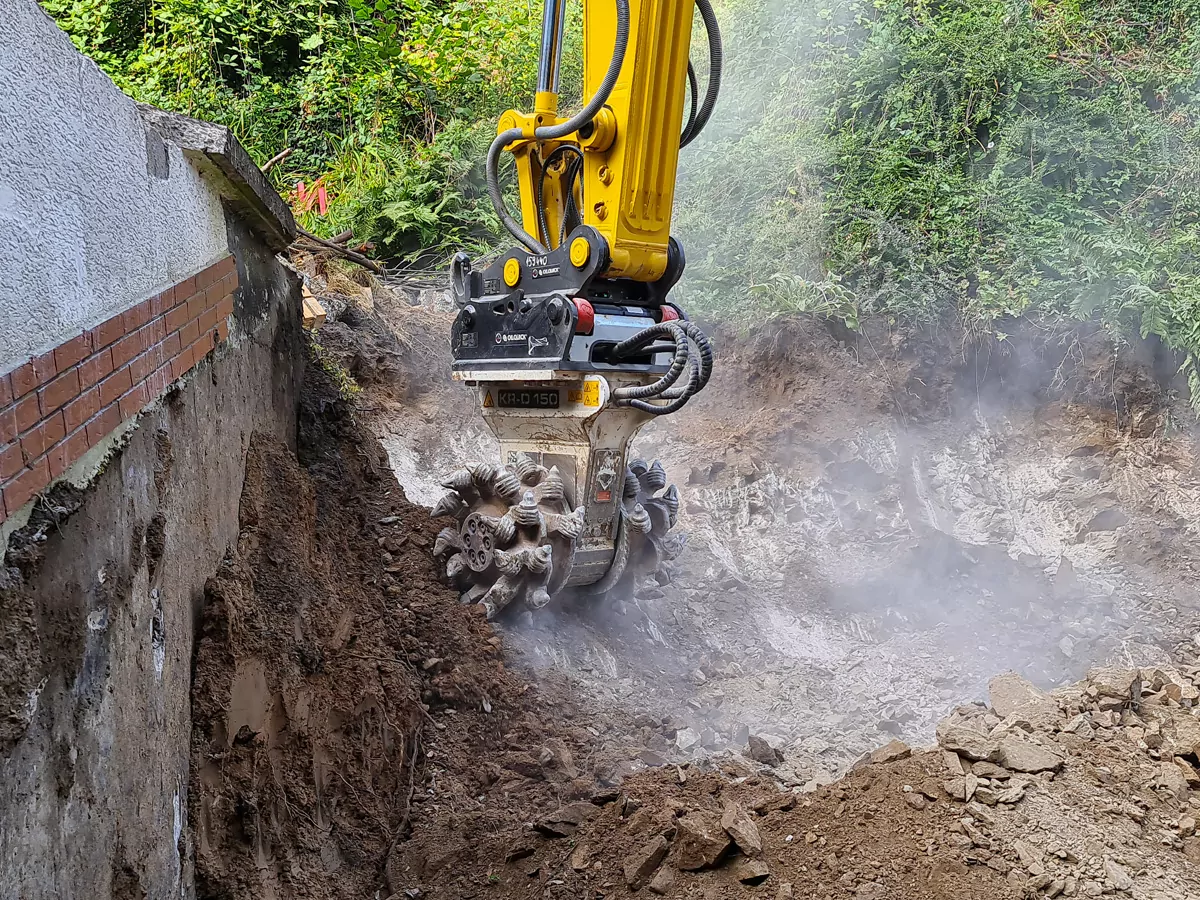

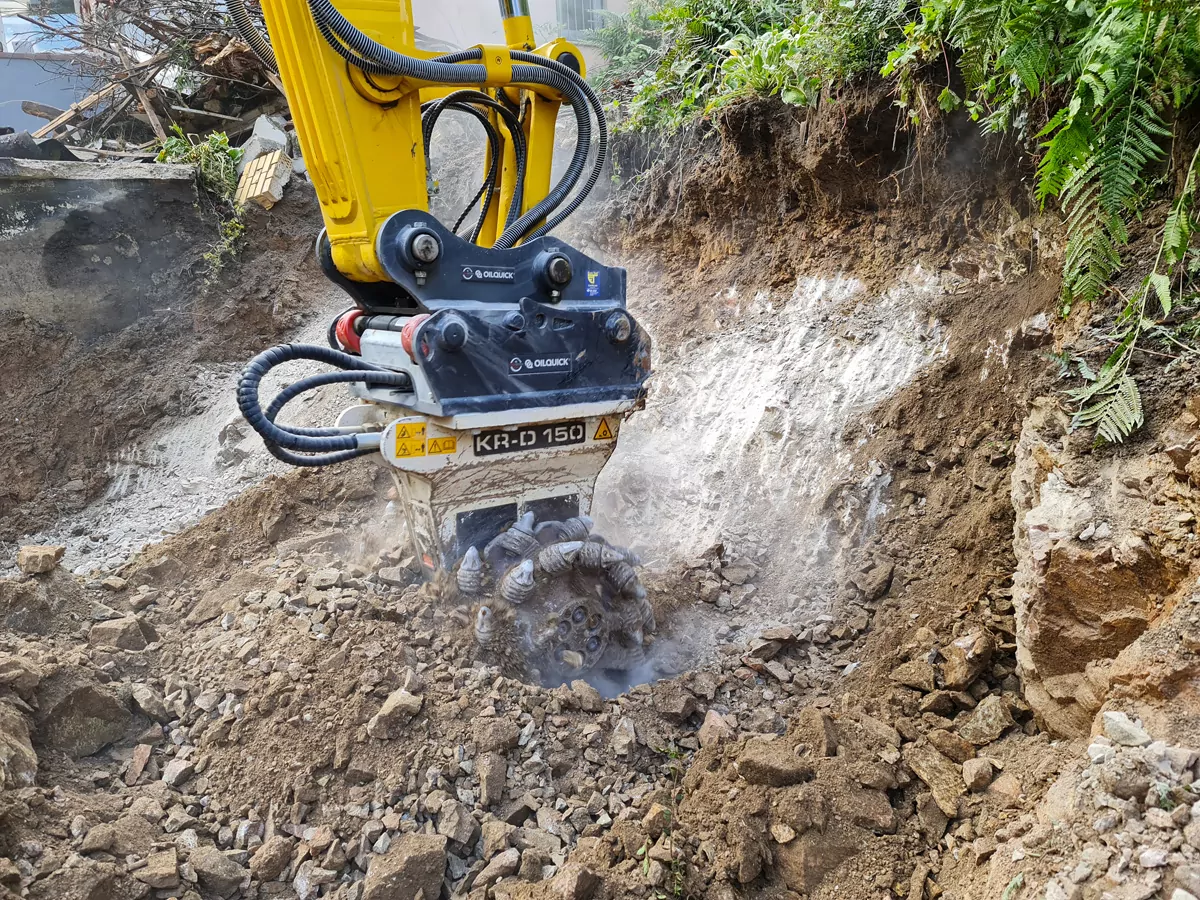

Model KRD 150

TECHNICAL DATA

VIDEO

FOTOS

Measure:

Recommended excavator weight
30 – 40 t 65K – 90K lb
Rated power
120 kW 160 hp (120 kW)
Drum cutter length (A)
1.070 mm 42 in
Cutting width (B)
1.020 mm 40 in
Cutter drum diameter (C)
742 mm 29 in
Recommended rpm
65 rpm 65 rpm
Recommended oil flow
330 l/min 87 gal/min
Max. oil flow
360 l/min 95 gal/min
Max. operating pressure
400 bar 5,800 psi (400 bar)
Torque at 380 bar
29,800 Nm 22,000 lbf·ft
Cutting force at 380 bar
80.2 kN 18,030 lbf
Max. rock compressive strength
100 MPa 14,500 psi
Weight per cutting width
1400 kg 3,085 lbs
Pick box
PH 32 HD Type PH 32 HD Type
Number of picks
48 Pcs 48 Pcs
Standard pick
17/75/70/30 Q 17/75/70/30 Q
Standard hole pattern
LB40 LB40
Compatible rotation unit (KRM)
KRM60 KRM60
