Technology

The experience gained from many years of cutting rock has gone into the design of the cutter wheels, drums and chains. They are designed to give maximum cutting performance with minimum wear costs.

Well proven cutting technology

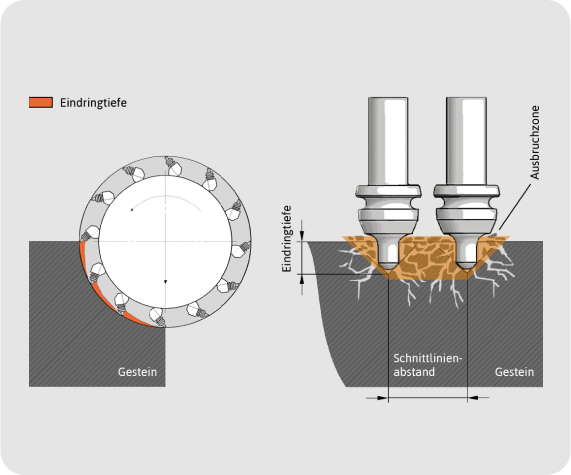

When grinding with round attack picks, each tool penetrates into the rock along parallel paths and breaks material out from the space between the paths.

The selection of picks and boxes, as well as the design of the pick pattern, are part of our continuous product improvement.

The cutting rate depends to a large degree on the uniaxial compressive strength of the rock being cut. Other significant factors affecting production rates include the hydraulic pressure and flow that the excavator is able to supply to the attachment, as well as the stability and weight of the excavator.

Attachments for all

trench sizes

Trenching attachments from KEMROC provide options for trench widths from 4 centimeters.

DMW Cutter Wheels
Measure:
- Trench width
  80 – 400 mm
  3 – 16 in
- Trench depth
  400 – 1.000 mm
  16 – 40 in
- Recommended excavator weight
  14 – 60 t
  30,000 – 132,000 lb
- Max. uniaxial compressive strength
  120 MPa
  17,500 (120) psi (MPa)
12 models
Details
KTR Trenching Attachments
Measure:
- Trench width
  170 – 400 mm
  7 – 16 in
- Trench depth
  1.000 – 1.800 mm
  39 – 71 in
- Recommended excavator weight
  18 – 35 t
  40,000 – 77,000 lb
- Max. uniaxial compressive strength
  60 MPa
  8,700 (60) psi (MPa)
2 models
Details
KRX Powertool drives
Measure:
- Trench width
  400 – 500 mm
  16 – 20 in
- Trench depth
  100 – 3.000 mm
  4 – 120 in
- Recommended excavator weight
  5 – 50 t
  11,000 – 110,000 lb
- Max. uniaxial compressive strength
  140 MPa
  20,300 (140) psi (MPa)
11 models
Details
EK Chain Cutters
Measure:
- Trench width
  480 – 3.000 mm
  19 – 120 in
- Trench depth
  100 – 8.000 mm
  4 – 300 in
- Recommended excavator weight
  2 – 70 t
  4,400 – 154,000 lb
- Max. uniaxial compressive strength
  120 MPa
  17,500 (120) psi (MPa)
9 models
Details
EKT range
Measure:
- Trench width
  600 – 5.000 mm
  24 – 200 in
- Trench depth
  200 – 8.000 mm
  8 – 300 in
- Recommended excavator weight
  2 – 70 t
  4,400 – 154,000 lb
- Max. uniaxial compressive strength
  150 MPa
  21,800 (150) psi (MPa)
10 models
Details
KR range
Measure:
- Trench width
  700 – 5.000 mm
  27 – 200 in
- Trench depth
  200 – 8.000 mm
  8 – 300 in
- Recommended excavator weight
  0,6 – 125 t
  1,300 – 275,000 lb
- Max. uniaxial compressive strength
  180 MPa
  26,100 (180) psi (MPa)
29 models
Details
KRD range
Measure:
- Trench width
  750 – 5.000 mm
  30 – 200 in
- Trench depth
  200 – 8.000 mm
  8 – 300 in
- Recommended excavator weight
  0,5 – 50 t
  1,100 – 110,000 lb
- Max. uniaxial compressive strength
  100 MPa
  14,500 (100) psi (MPa)
9 models
Details
KRC Bullhead Cutters
Measure:
- Trench width
  780 – 5.000 mm
  30 – 200 in
- Trench depth
  200 – 8.000 mm
  8 – 300 in
- Recommended excavator weight
  18 – 40 t
  40,000 – 88,000 lb
- Max. uniaxial compressive strength
  80 MPa
  11,600 (80) psi (MPa)
7 models
Details
