KR range
28 models

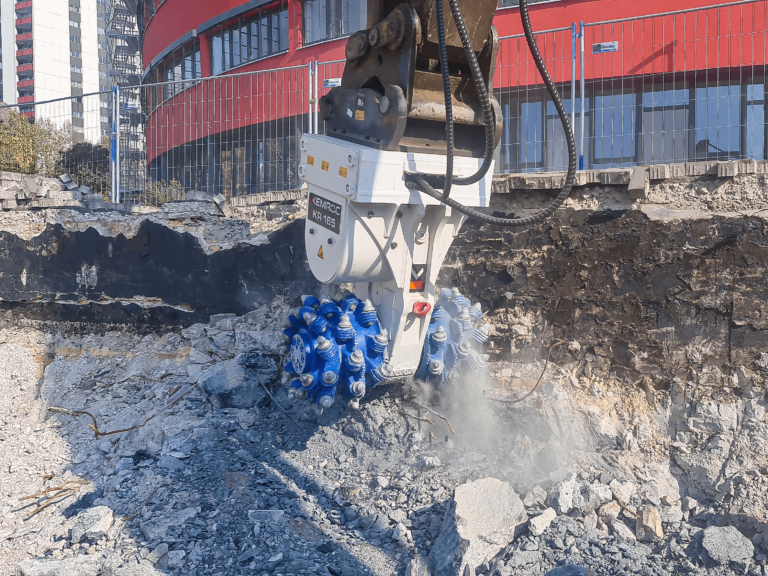

Rotary drum cutters with spur gears
28 models
Features
- Extra heavy-duty, rigid gear box housing
- Exceptional wear protection on the gearbox
- Equipped for optional water spray dust suppression system
- High torque motors for maximum cutting force
- Drums supported on heavy-duty bearings
- Protected hose management
- Works underwater without need for modifications
Application areas
- Tunnelling
- Demolition
- Also used for trenching and pipeline work, renovating concrete, profiling, mining of soft minerals and underwater excavating
World innovation
In addition to standard EK and the convertible EKT range, traditional style rotary drum cutters are now also available from KEMROC. They are designated as the new KR range of drum cutters. Designed to be incredibly robust, these attachments are ideal for use on short arm excavators working in confined spaces, especially in tunneling and also for the vibration free and silent demolition of re-enforced
concrete structures.
Effective dust control is particularly importand in demolition and tunneling applications. The KR range of cutters are designed for the installation of an optional, hydraulically controlled water jet dust control system.
Measure: Compare Models
- Compatible rotation unit (KRM)
- Cutter drum diameter (C)
- Cutting force at 380 bar
- Cutting width (B)
- Drum cutter length (A)
- Max. oil flow
- Max. operating pressure
- Max. rock compressive strength
- Number of picks
- Pick box
- Rated power
- Recommended excavator weight
- Recommended oil flow
- Recommended rpm
- Standard hole pattern
- Standard pick
- Torque at 380 bar
- Weight per cutting width
- KR range
Show more
Show less
- KR 10
- KRM30
- 225 mm 9 in
- 8.3 kN 1865 lbf
- 425 mm 17 in
- 490 mm 19 in
- 40 l/min 11 gal/min
- 400 bar 5800 psi (400 bar)
- 20 MPa 2900 psi
- 44 Pcs 44 Pcs
- PH 14 Type PH 14 Type
- 10 kW 15 hp
- 0,6 – 3 t 0 – 5K lb
- 15 l/min 4 gal/min
- 95 rpm 95 rpm
- LB10
- 15/29/26/14 C 15/29/26/14 C
- 900 Nm 650 lbf·ft
- 103 kg 225 lbs
Details - KR 15
- KRM30
- 225 mm 9 in
- 9.2 kN 2077 lbf
- 425 mm 17 in
- 490 mm 19 in
- 45 l/min 12 gal/min
- 400 bar 5800 psi (400 bar)
- 20 MPa 2900 psi
- 44 Pcs 44 Pcs
- PH 14 Type PH 14 Type
- 15 kW 20 hp (15 kW)
- 0,6 – 3 t 0 – 5K lb
- 20 l/min 5 gal/min
- 115 rpm 115 rpm
- LB10
- 15/29/26/14 C 15/29/26/14 C
- 1000 Nm 750 lbf·ft
- 103 kg 225 lbs
Details - KR 18
- KRM30
- 225 mm 9 in
- 18.8 kN 4225 lbf
- 425 mm 17 in
- 490 mm 19 in
- 90 l/min 24 gal/min
- 400 bar 5800 psi (400 bar)
- 20 MPa 2900 psi
- 44 Pcs 44 Pcs
- PH 14 Type PH 14 Type
- 18 kW 25 hp (18 kW)
- 2 – 4 t 5K – 10K lb
- 40 l/min 11 gal/min
- 115 rpm 115 rpm
- LB10
- 15/29/26/14 C 15/29/26/14 C
- 2100 Nm 1550 lbf·ft
- 103 kg 225 lbs
Details - KR 20
- KRM30
- 240 mm 9 in
- 17.6 kN 3955 lbf
- 495 mm 19 in
- 500 mm 20 in
- 85 l/min 22 gal/min
- 400 bar 5800 psi (400 bar)
- 20 MPa 2900 psi
- 56 Pcs 56 Pcs
- PH 14 Type PH 14 Type
- 18 kW 25 hp (18 kW)
- 2 – 4 t 5K – 10K lb
- 35 l/min 9 gal/min
- 100 rpm 100 rpm
- LB10
- 15/29/26/14 C 15/29/26/14 C
- 2100 Nm 1550 lbf·ft
- 130 kg 285 lbs
Details - KR 35
- KRM35
- 370 mm 15 in
- 23.9 kN 5375 lbf
- 620 mm 24 in
- 845 mm 33 in
- 115 l/min 30 gal/min
- 400 bar 5800 psi (400 bar)
- 30 MPa 4350 psi
- 64 Pcs 64 Pcs
- PH 20 Type PH 20 Type
- 30 kW 40 hp (30 kW)
- 5 – 8 t 10K – 20K lb
- 85 l/min 22 gal/min
- 115 rpm 115 rpm
- LB10
- 16/46/38/20 C 16/46/38/20 C
- 4400 Nm 3250 lbf·ft
- 375 kg 825 lbs
Details - KR 35C
- KRM35
- 370 mm 15 in
- 23.9 kN 5327 lbf
- 520 mm 20 in
- 845 mm 33 in
- 115 l/min 30 gal/min
- 400 bar 5800 psi (400 bar)
- 30 MPa 4350 psi
- 44 Pcs 44 Pcs
- PH 20 Type PH 20 Type
- 30 kW 40 hp (30 kW)
- 5 – 8 t 10K – 20K lb
- 85 l/min 22 gal/min
- 115 rpm 115 rpm
- LB10
- 16/46/38/20 C 16/46/38/20 C
- 4400 Nm 3250 lbf·ft
- 310 kg 683 lbs
Details - KR 45
- KRM40
- 400 mm 16 in
- 30.7 kN 6900 lbf
- 600 mm 24 in
- 990 mm 39 in
- 145 l/min 38 gal/min
- 400 bar 5800 psi (400 bar)
- 40 MPa 5800 psi
- 44 Pcs 44 Pcs
- PH 20 Type PH 20 Type
- 45 kW 60 hp (45 kW)
- 9 – 15 t 20K – 35K lb
- 105 l/min 28 gal/min
- 105 rpm 105 rpm
- LB20
- 16/46/38/20 C 16/46/38/20 C
- 6100 Nm 4500 lbf·ft
- 500 kg 1100 lbs
Details - KR 50
- KRM40
- 450 mm 18 in
- 27.3 kN 6135 lbf
- 690 mm 27 in
- 1014 mm 40 in
- 130 l/min 34 gal/min
- 400 bar 5800 psi (400 bar)
- 40 MPa 5800 psi
- 44 Pcs 44 Pcs
- PH 22 Type PH 22 Type
- 45 kW 60 hp (45 kW)
- 9 – 15 t 20K – 35K lb
- 95 l/min 25 gal/min
- 95 rpm 95 rpm
- LB20
- 12/45/38/22 HC 12/45/38/22 HC
- 6100 Nm 4500 lbf·ft
- 550 kg 1215 lbs
Details - KR 65
- KRM40
- 587 mm 23 in
- 41.8 kN 9395 lbf
- 805 mm 32 in
- 1195 mm 47 in
- 170 l/min 45 gal/min
- 400 bar 5800 psi (400 bar)
- 60 MPa 8700 psi
- 44 Pcs 44 Pcs
- PH 30 HD Type PH 30 HD Type
- 65 kW 85 hp (65 kW)
- 12 – 18 t 25K – 40K lb
- 145 l/min 38 gal/min
- 70 rpm 70 rpm
- LB20
- 17/75/70/30 Q 17/75/70/30 Q
- 12300 Nm 9050 lbf·ft
- 900 kg 1985 lbs
Details - KR 70
- KRM40
- 587 mm 23 in
- 50.1 kN 11265 lbf
- 805 mm 32 in
- 1195 mm 47 in
- 190 l/min 50 gal/min
- 400 bar 5800 psi (400 bar)
- 70 MPa 10150 psi
- 44 Pcs 44 Pcs
- PH 30 HD Type PH 30 HD Type
- 70 kW 95 hp (70 kW)
- 15 – 23 t 35K – 50K lb
- 175 l/min 46 gal/min
- 70 rpm 70 rpm
- LB20
- 17/75/70/30 Q 17/75/70/30 Q
- 14700 Nm 10850 lbf·ft
- 900 kg 1985 lbs
Details - KR 80
- KRM50
- 587 mm 23 in
- 53.6 kN 12050 lbf
- 805 mm 32 in
- 1235 mm 49 in
- 210 l/min 55 gal/min
- 400 bar 5800 psi (400 bar)
- 80 MPa 11600 psi
- 44 Pcs 44 Pcs
- PH 30 HD Type PH 30 HD Type
- 80 kW 105 hp (80 kW)
- 15 – 25 t 35K – 55K lb
- 185 l/min 49 gal/min
- 70 rpm 70 rpm
- LB30
- 17/75/70/30 Q 17/75/70/30 Q
- 15700 Nm 11600 lbf·ft
- 1070 kg 2359 lbs
Details - KR 110
- KRM60
- 720 mm 28 in
- 52.7 kN 11845 lbf
- 1040 mm 41 in
- 1470 mm 58 in
- 250 l/min 66 gal/min
- 400 bar 5800 psi (400 bar)
- 90 MPa 13100 psi
- 60 Pcs 60 Pcs
- PH 32 HD Type PH 32 HD Type
- 110 kW 150 hp (110 kW)
- 20 – 35 t 45K – 75K lb
- 225 l/min 59 gal/min
- 70 rpm 70 rpm
- LB40
- 19/75/70/30 Q 19/75/70/30 Q
- 19000 Nm 14000 lbf·ft
- 2050 kg 4520 lbs
Details - KR 110 C
- KRM60
- 720 mm 28 in
- 52.7 kN 11845 lbf
- 880 mm 35 in
- 1470 mm 58 in
- 250 l/min 66 gal/min
- 400 bar 5800 psi (400 bar)
- 90 MPa 13100 psi
- 44 Pcs 44 Pcs
- PH 32 HD Type PH 32 HD Type
- 110 kW 150 hp (110 kW)
- 20 – 35 t 45K – 75K lb
- 225 l/min 59 gal/min
- 70 rpm 70 rpm
- LB40
- 17/75/70/30 Q 17/75/70/30 Q
- 19000 Nm 14000 lbf·ft
- 1850 kg 4080 lbs
Details - KR 120
- KRM60
- 720 mm 28 in
- 75.6 kN 16995 lbf
- 1040 mm 41 in
- 1470 mm 58 in
- 360 l/min 95 gal/min
- 400 bar 5800 psi (400 bar)
- 100 MPa 14500 psi
- 60 Pcs 60 Pcs
- PH 32 HD Type PH 32 HD Type
- 120 kW 160 hp (120 kW)
- 25 – 45 t 55K – 100K lb
- 320 l/min 85 gal/min
- 70 rpm 70 rpm
- LB40
- 19/75/70/30 Q 19/75/70/30 Q
- 27200 Nm 20050 lbf·ft
- 2050 kg 4520 lbs
Details - KR 120 C
- KRM60
- 720 mm 28 in
- 75.6 kN 16995 lbf
- 880 mm 35 in
- 1470 mm 58 in
- 360 l/min 95 gal/min
- 400 bar 5800 psi (400 bar)
- 100 MPa 14500 psi
- 44 Pcs 44 Pcs
- PH 32 HD Type PH 32 HD Type
- 120 kW 160 hp (120 kW)
- 20 – 40 t 45K – 90K lb
- 320 l/min 85 gal/min
- 70 rpm 70 rpm
- LB40
- 17/75/70/30 Q 17/75/70/30 Q
- 27200 Nm 20050 lbf·ft
- 1850 kg 4080 lbs
Details - KR 150
- KRM60
- 720 mm 28 in
- 82.7 kN 18590 lbf
- 1040 mm 41 in
- 1470 mm 58 in
- 360 l/min 95 gal/min
- 400 bar 5800 psi (400 bar)
- 100 MPa 14500 psi
- 60 Pcs 60 Pcs
- PH 32 HD Type PH 32 HD Type
- 120 kW 160 hp (120 kW)
- 30 – 50 t 65K – 110K lb
- 330 l/min 87 gal/min
- 65 rpm 65 rpm
- LB40
- 19/75/70/30 Q 19/75/70/30 Q
- 29800 Nm 22000 lbf·ft
- 2050 kg 4520 lbs
Details - KR 150 C
- KRM60
- 720 mm 28 in
- 82.7 kN 18590 lbf
- 880 mm 35 in
- 1470 mm 58 in
- 360 l/min 95 gal/min
- 400 bar 5800 psi (400 bar)
- 100 MPa 14500 psi
- 44 Pcs 44 Pcs
- PH 32 HD Type PH 32 HD Type
- 120 kW 160 hp (120 kW)
- 30 – 50 t 65K – 110K lb
- 330 l/min 87 gal/min
- 65 rpm 65 rpm
- LB40
- 17/75/70/30 Q 17/75/70/30 Q
- 29800 Nm 22000 lbf·ft
- 1850 kg 4080 lbs
Details - KR 155
- KRM60
- 720 mm 28 in
- 90.7 kN 20390 lbf
- 1040 mm 41 in
- 1470 mm 58 in
- 360 l/min 95 gal/min
- 400 bar 5800 psi (400 bar)
- 100 MPa 14500 psi
- 60 Pcs 60 Pcs
- PH 32 HD Type PH 32 HD Type
- 120 kW 160 hp (120 kW)
- 30 – 50 t 65K – 110K lb
- 340 l/min 90 gal/min
- 65 rpm 65 rpm
- LB40
- 19/75/70/30 Q 19/75/70/30 Q
- 32700 Nm 24100 lbf·ft
- 2050 kg 4520 lbs
Details - KR 165
- KRM70
- 720 mm 28 in
- 101.1 kN 22730 lbf
- 1250 mm 49 in
- 1590 mm 63 in
- LB40
- 400 l/min 106 gal/min
- 400 bar 5800 psi (400 bar)
- 110 MPa 16000 psi
- 64 Pcs 64 Pcs
- PH 32 HD Type PH 32 HD Type
- 160 kW 215 hp (160 kW)
- 35 – 55 t 75K – 120K lb
- 380 l/min 100 gal/min
- 65 rpm 65 rpm
- 19/75/70/30 Q 19/75/70/30 Q
- 36400 Nm 26850 lbf·ft
- 2800 kg 6175 lbs
Details - KR 165C
- KRM70
- 720 mm 28 in
- 101.1 kN 22730 lbf
- 1050 mm 41 in
- 1590 mm 63 in
- 400 l/min 106 gal/min
- 400 bar 5800 psi (400 bar)
- 110 MPa 16000 psi
- 60 Pcs 60 Pcs
- PH 32 HD Type PH 32 HD Type
- 160 kW 215 hp (160 kW)
- 35 – 55 t 75K – 120K lb
- 380 l/min 100 gal/min
- 65 rpm 65 rpm
- LB40
- 19/75/70/30 Q 19/75/70/30 Q
- 36400 Nm 26850 lbf·ft
- 2550 kg 5620 lbs
Details - KR 175
- KRM70
- 720 mm 28 in
- 119.4 kN 26840 lbf
- 1250 mm 49 in
- 1590 mm 63 in
- 420 l/min 111 gal/min
- 400 bar 5800 psi (400 bar)
- 110 MPa 16000 psi
- 64 Pcs 64 Pcs
- PH 32 HD Type PH 32 HD Type
- 160 kW 215 hp (160 kW)
- 40 – 55 t 90K – 120K lb
- 400 l/min 106 gal/min
- 55 rpm 55 rpm
- LB40
- 19/75/70/30 Q 19/75/70/30 Q
- 43000 Nm 31700 lbf·ft
- 2800 kg 6175 lbs
Details - KR 175C
- KRM70
- 720 mm 28 in
- 119.4 kN 26840 lbf
- 1050 mm 41 in
- 1590 mm 63 in
- 420 l/min 111 gal/min
- 400 bar 5800 psi (400 bar)
- 110 MPa 16000 psi
- 60 Pcs 60 Pcs
- PH 32 HD Type PH 32 HD Type
- 160 kW 215 hp (160 kW)
- 40 – 55 t 90K – 120K lb
- 400 l/min 106 gal/min
- 55 rpm 55 rpm
- LB40
- 19/75/70/30 Q 19/75/70/30 Q
- 43000 Nm 31700 lbf·ft
- 2550 kg 5620 lbs
Details - KR 200
- KRM80
- 825 mm 32 in
- 147.0 kN 33045 lbf
- 1330 mm 52 in
- 1660 mm 65 in
- 500 l/min 139 gal/min
- 400 bar 5800 psi (400 bar)
- 140 MPa 20300 psi
- 64 Pcs 64 Pcs
- PH 38 HD Type PH 38 HD Type
- 200 kW 270 hp (200 kW)
- 50 – 70 t 110K – 155K lb
- 430 l/min 114 gal/min
- 50 rpm 50 rpm
- LB40
- 25/80/80/38 C 25/80/80/38 C
- 60500 Nm 44600 lbf·ft
- 3720 kg 8200 lbs
Details - KR 250
- KRM80
- 825 mm 32 in
- 173.3 kN 38960 lbf
- 1330 mm 52 in
- 1650 mm 65 in
- 600 l/min 159 gal/min
- 400 bar 5800 psi (400 bar)
- 140 MPa 20300 psi
- 64 Pcs 64 Pcs
- PH 38 HD Type PH 38 HD Type
- 200 kW 270 hp (200 kW)
- 60 – 80 t 130K – 175K lb
- 580 l/min 153 gal/min
- 60 rpm 60 rpm
- LB40
- 25/80/80/38 C 25/80/80/38 C
- 71500 Nm 52750 lbf·ft
- 3720 kg 8200 lbs
Details - KR 400
- 950 mm 37 in
- 255.3 kN 57395 lbf
- 1650 mm 65 in
- 2050 mm 81 in
- 1200 l/min 317 gal/min
- 400 bar 5800 psi (400 bar)
- 180 MPa 26100 psi
- 88 Pcs 88 Pcs
- PH 38 HD Type PH 38 HD Type
- 400 kW 535 hp (400 kW)
- 80 – 125 t 175K – 275K lb
- 885 l/min 234 gal/min
- 45 rpm 45 rpm
- LB50
- 25/80/80/38 C 25/80/80/38 C
- 121500 Nm 89600 lbf·ft
- 7100 kg 15653 lbs
Details - KR 400C
- 950 mm 37 in
- 255.3 kN 57395 lbf
- 1300 mm 51 in
- 2050 mm 81 in
- 1200 l/min 317 gal/min
- 400 bar 5800 psi (400 bar)
- 180 MPa 26100 psi
- 68 Pcs 68 Pcs
- PH 38 HD Type PH 38 HD Type
- 400 kW 535 hp (400 kW)
- 80 – 125 t 175K – 275K lb
- 885 l/min 234 gal/min
- 45 rpm 45 rpm
- LB50
- 25/80/80/38 C 25/80/80/38 C
- 121500 Nm 89600 lbf·ft
- 6300 kg 13890 lbs
Details - KR 450
- 950 mm 37 in
- 301.0 kN 67665 lbf
- 1650 mm 65 in
- 2050 mm 81 in
- 1200 l/min 317 gal/min
- 400 bar 5800 psi (400 bar)
- 180 MPa 26100 psi
- 88 Pcs 88 Pcs
- PH 38 HD Type PH 38 HD Type
- 400 kW 535 hp (400 kW)
- 100 – 125 t 200K – 275K lb
- 1045 l/min 276 gal/min
- 45 rpm 45 rpm
- LB50
- 25/80/80/38 C 25/80/80/38 C
- 143000 Nm 105450 lbf·ft
- 7100 kg 15655 lbs
Details - KR 450C
- 950 mm 37 in
- 301.0 kN 67665 lbf
- 1300 mm 51 in
- 2050 mm 81 in
- 1200 l/min 317 gal/min
- 380 bar 5800 psi (400 bar)
- 180 MPa 26100 psi
- 68 Pcs 68 Pcs
- PH 38 HD Type PH 38 HD Type
- 400 kW 535 hp (400 kW)
- 100 – 125 t 200K – 275K lb
- 1045 l/min 276 gal/min
- 45 rpm 45 rpm
- LB50
- 25/80/80/38 C 25/80/80/38 C
- 143000 Nm 105450 lbf·ft
- 6300 kg 13889 lbs
Details
Show more
Show less
